Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 283

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 283

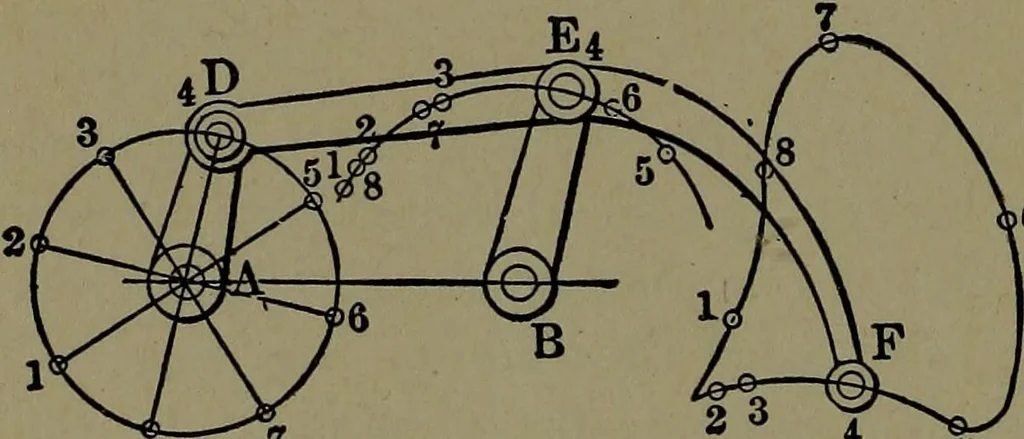

motion of a shaft from acontinuous motion of a crank pin. 1126. VARIABLE CRANK THROW. —The jointed crank and radial screw give-^ a large variation to the throw of a crank. 1127. COMBINATIONCRANK-MOTIONCURVES.—A revolving^ crank A, D and the vi-brating link B, E carry-ing an extended connect-g « 5…
