An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 36

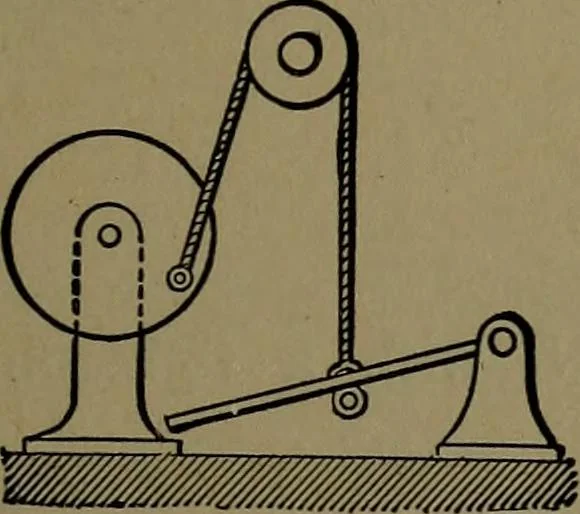

49. ALTERNATING CIRCULAR MOTIONfrom the curvilinear motion of a treadle. Theancient lathe motion. 50. CIRCULAR MOTION from curvilin-ear motion of a treadle through a cord andpulley.
