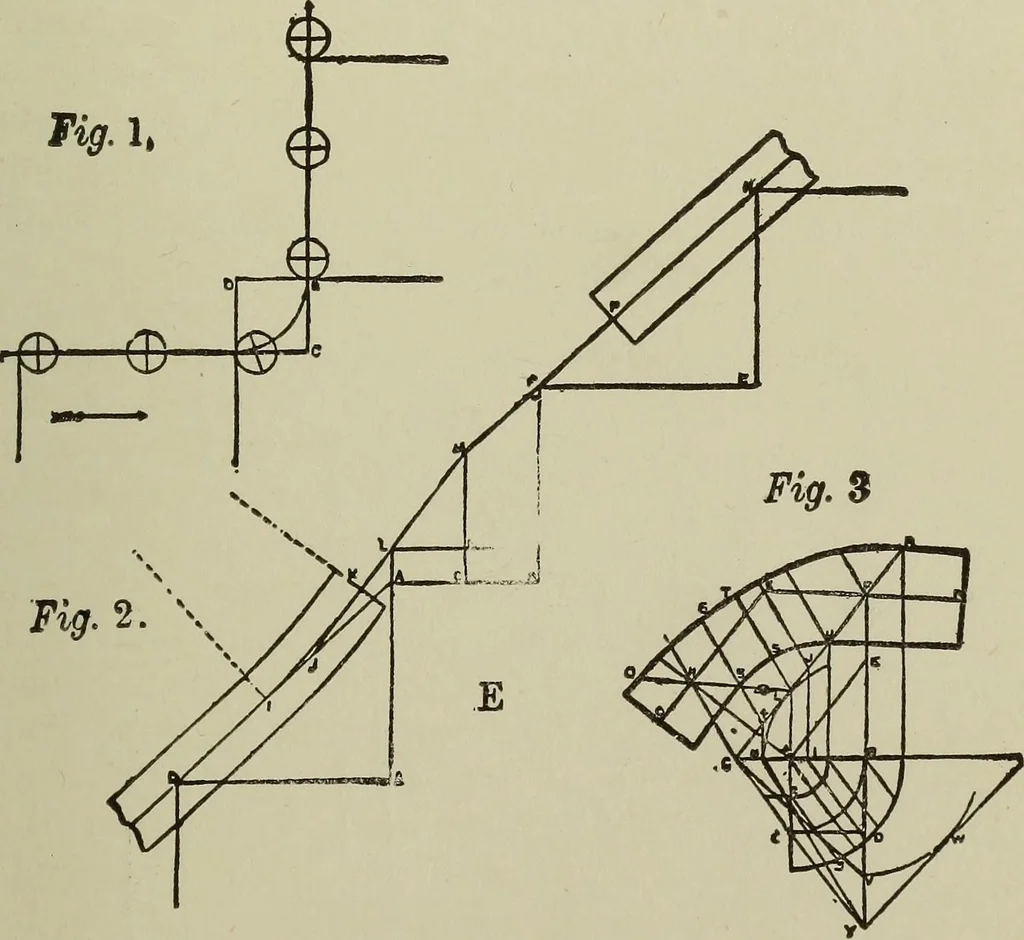

where thespace for the steps is confined for room. Fig. I, diagram E, shows the center line of ra.. andthe plan of stairs. Fig, 2; Draw the tread, DE, and riser, EA; make SECOND METHOD 55 ACB equal to ACB, at Fig. i; draw the riser, BF, thetread, FG, and the riser, GH; draw DA and CM; drawHF to M;… … DIAGRAM E. QUARTER-SPACE RAILING describe the easing; joint the top rail square at Dabout 4 inches from F; draw LNO. Fig. 3: Mark the quadrant and the center line, BC;draw the square, ABCD; set up BE and BF equal toNM and CF, Fig. 2; draw AE, and draw FG parallel 56 COMMON-SENSE HANDRAILING to AE;…
