Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 97

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 97

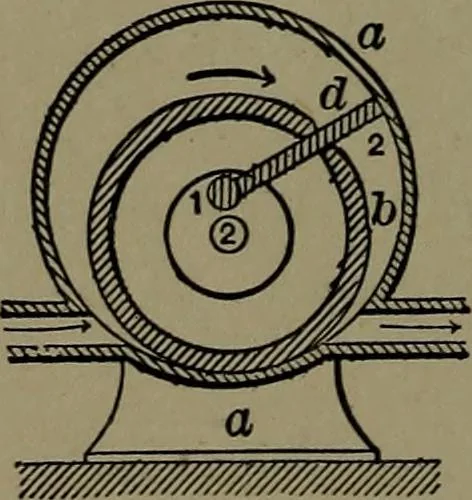

325. COCHRANE ROTARY ENGINE.— A wing piston rotating around the central axis of anouter shell or cylinder. A hollow cylinder of small-er diameter is pivoted eccentric to the wing axis tokeep one side in contact with the shell. The steampressure revolves the wing and shaft with a forcedue to the…

Mechanical movements
