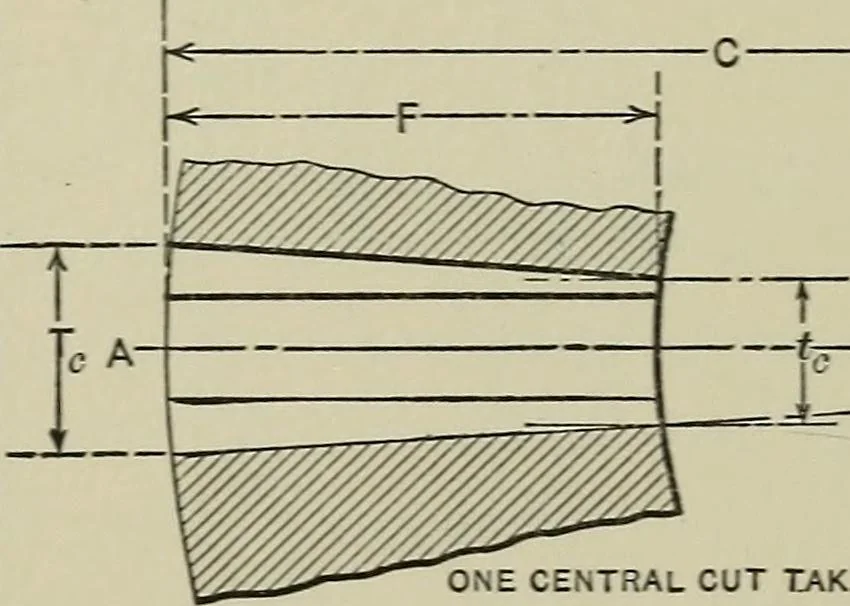

roximation which omit the hand filing. 264 BEVEL GEARING Set-over. — In the upper part of Fig. 2 is shown a section ofthe gear in Fig. i, taken along the pitch cone at PO. It wiU beseen that the teeth at the pitch Hne converge, but meet at a pointconsiderably beyond the vertex 0. \Miat we have to… … \o ONE CENTRAL CUT TAKEN
