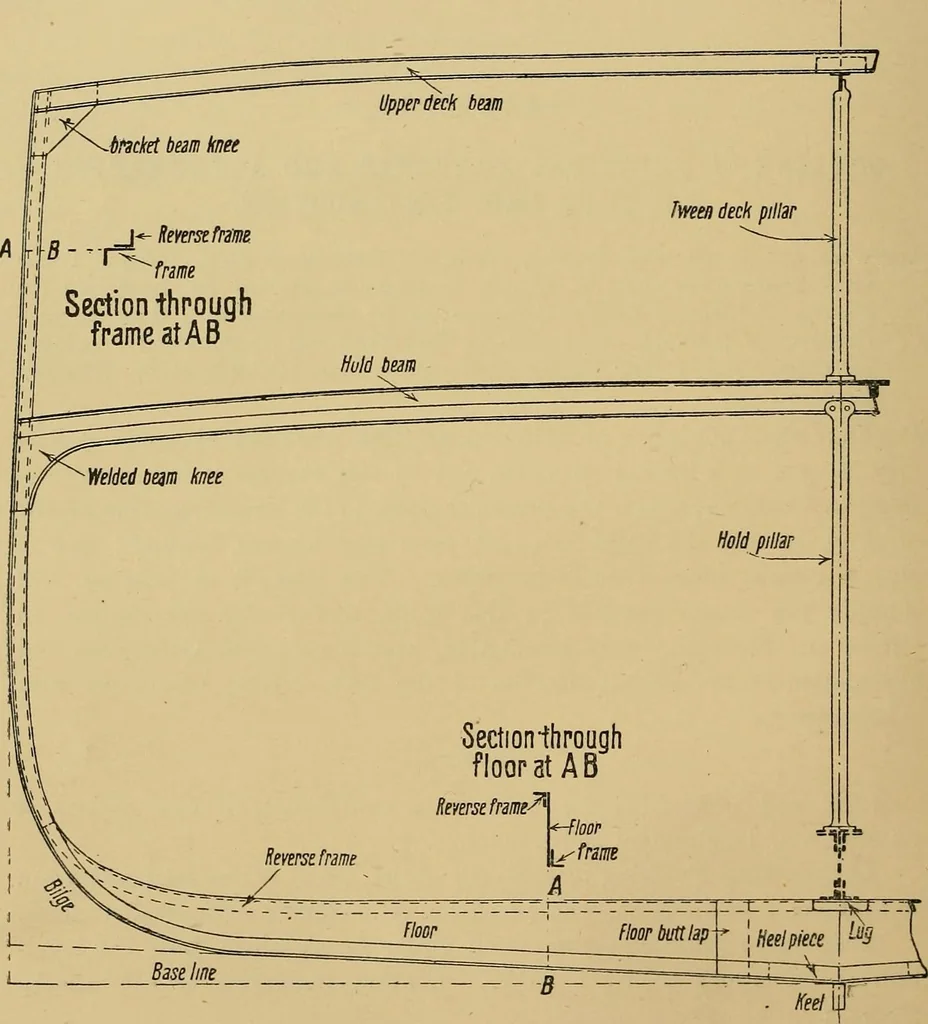

aming.—In order to preserve the transverse or athwartshipform of a ship under all the conditions of stress to which ships are subjectin carrying their various loads in smooth and wave water, a girder or frameis placed at intervals of from 20 to 30 or more inches apart, all fore and aft. Fig. 6… … Fig. 6.—Midship Section showing Transverse Framing with Ordinary Floors. a frame bar, a reverse frame bar, a floor plate, a beam, and a pillar orstanchion. The efficiency of the complete frame depends upon the thorough-ness of the combination of the various parts into one whole. Frames.—The/rame…
