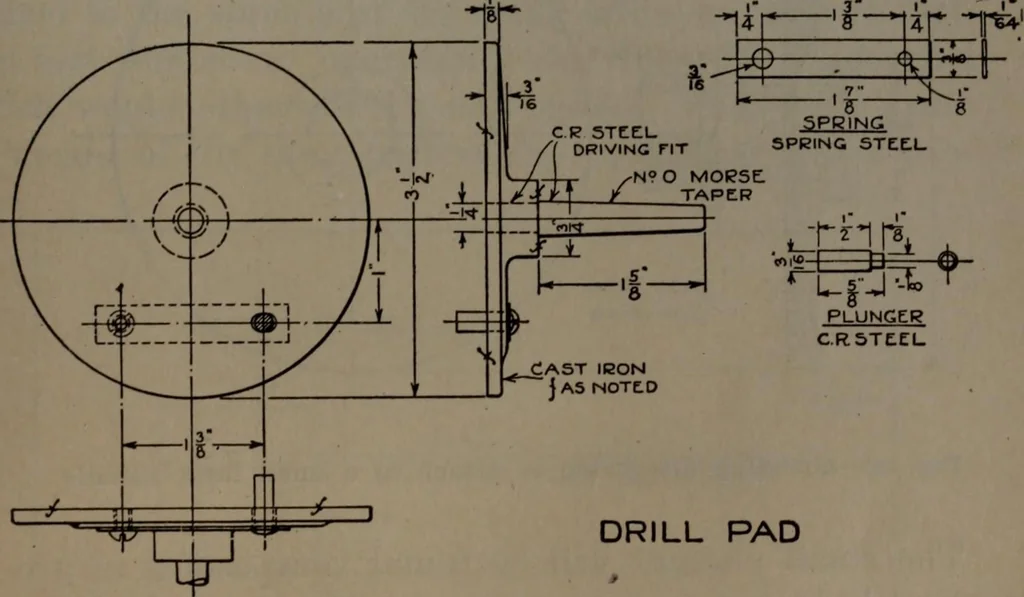

7 steel and the slots can be cut in them by drilling holesdown the center. The superfluous metal can be filed outto finish the slots. After this casting is finished, it isadvisable to have it case-hardened so it will resist wear.When it is fastened to the bed of the lathe, the bolts onthe tee rest… … I PLUNGERC.R5TCCL DRILL PAD Fig. 31—An easily made drill pad for a model makers lathe which permits the use of a wrench to tighten them. Theheads of the screws should also have a slot in themso that a screw driver can be used for preliminarytightening. A small drill pad is illustrated which can be…
