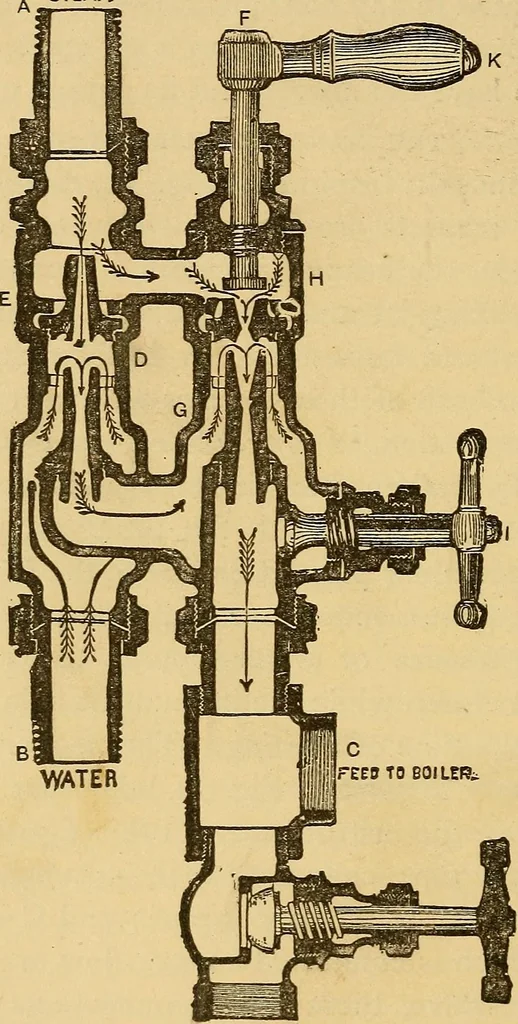

the water-supply pipe; and C is the feed-pipe, to which is connected an overflow or waste-pipewith waste-valve, these latter connections not beingshown in the figure. D is the lifting-jet, E the lifting-nozzle, G the forcing-jet, and H the force-nozzle. Thislatter nozzle is somewhat analogous to… … OVERFLOW. Fig. 72. the water delivered by the lifting-jet. The action ofthe inspirator can perhaps be most simply explained INJECTORS. 225 in connection with a description of the manipulationrequired to start the instrument. In the figure, theinspirator is represented in operation; but when it…
