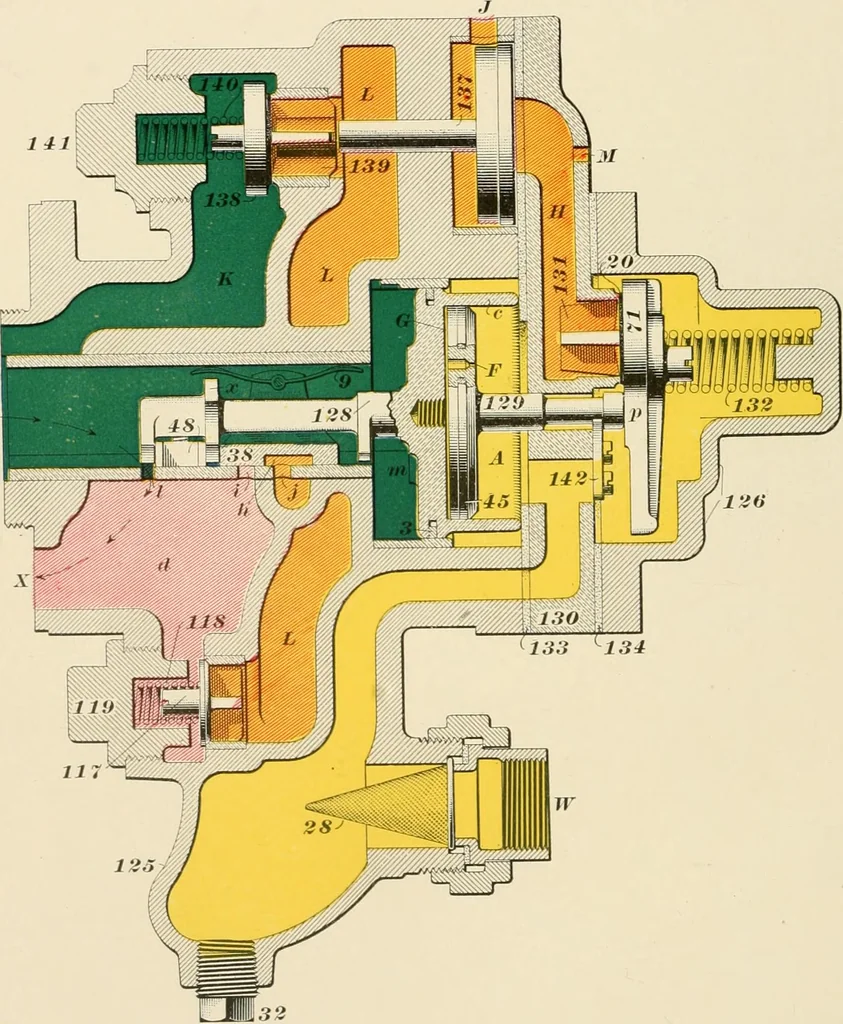

position, Fig. 8, feed grooves h and mare uncovered, allowing air from the train pipe to pass to theauxiliary reservoir and recharge it. Exhaust ports j and i areuncovered, and air in the brake cylinder escapes to the atmos-phere, thus releasing the brakes. * Figs. 9 and 10 are conventional…
