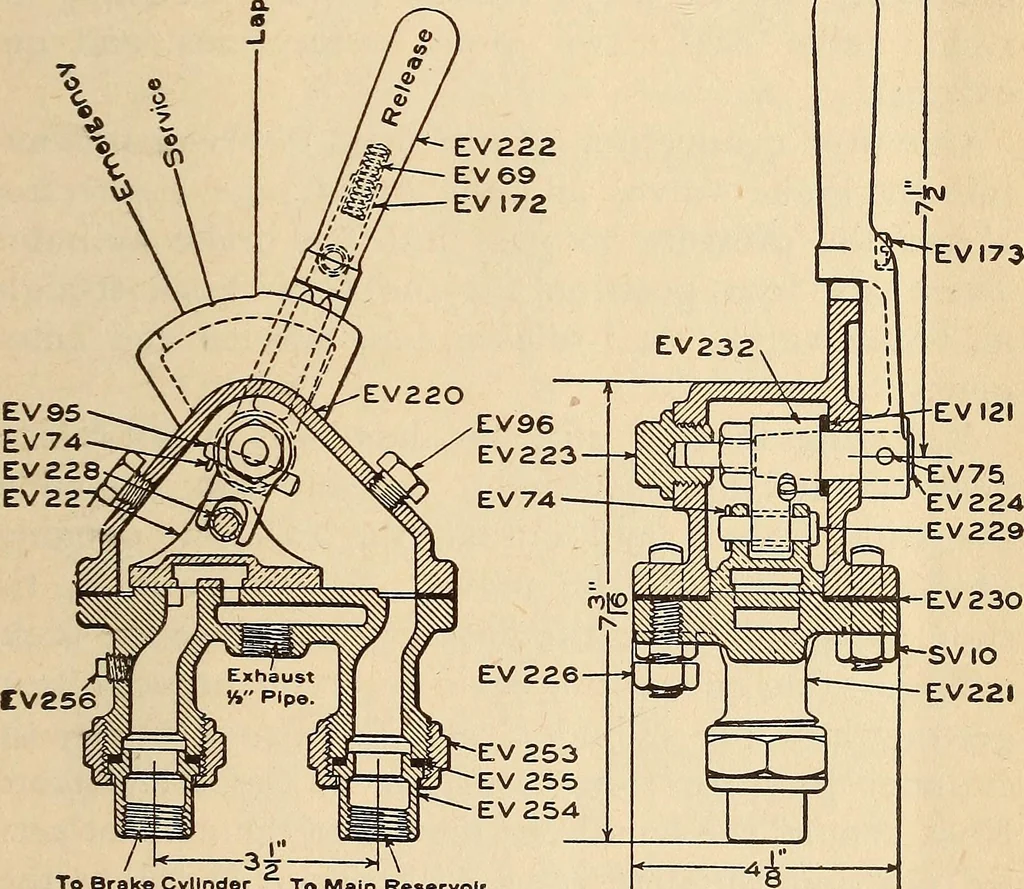

rced to its seat, and the brake cylinderpressure equalizes with the pressure in chamber L, Style F. Figure 262New York Qutck ActionTriple Valve AUTOMATIC AIR BRAKES 6r causing the non-return check valve to go to its seat,and it is held there both by the brake cylinder pressureand the spring Ii8.… … -svio EV2EI Figure 263New York Straight Air Engineers Brake Valve tender brakes independent of the triple valve whenthe triple is in release position. The New York straight air equipment consists of astraight air brake valve, a reducing valve, a doublecheck valve, a brake cylinder guauge, and a…
