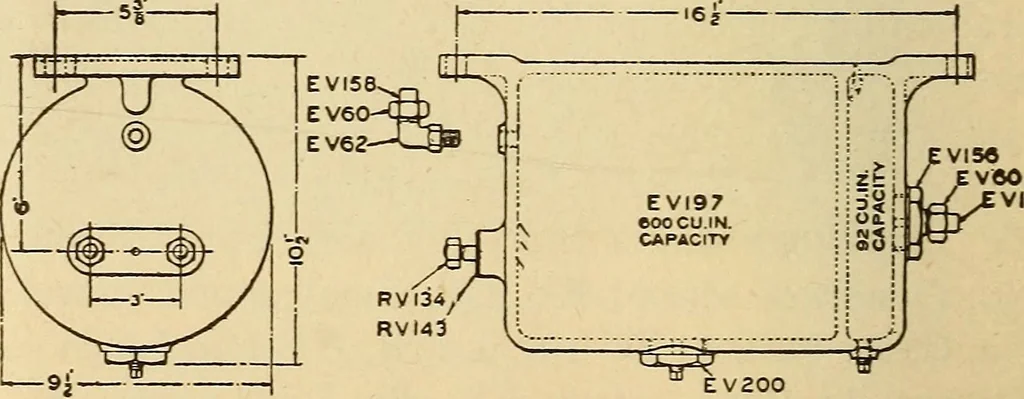

ro BRAKE VALVC fig. 278. SUPPLEMENTARY RESERVOIR USED WITH SWITCH ENGINE EQUIPMENT, SCHEDULE B2-S (FiG. 278). NAMES OF FARTS. EV 60, Small union nut; EV 155, Supplementary reser-voir; EV 156, Reservoir plug; EV 158, Union swivel (^copper pipe). Piece No. 16RV … Fig. 279.E V 60—Small union nut.EV 62—Small union ell.E V 156—Reservoir plug.E V 158—Union swivel. ^^ ™ EV200 Divided Reservoir. E V 197—Divided reservoir. E V 200—Botton plug. R V 134—K-inch stud and nut. R V 143—Accelerator valve gasket. THE DUPLEX PRESSURE CONTROLLER ANDDOUBLE PRESSURE SYSTEM.…
