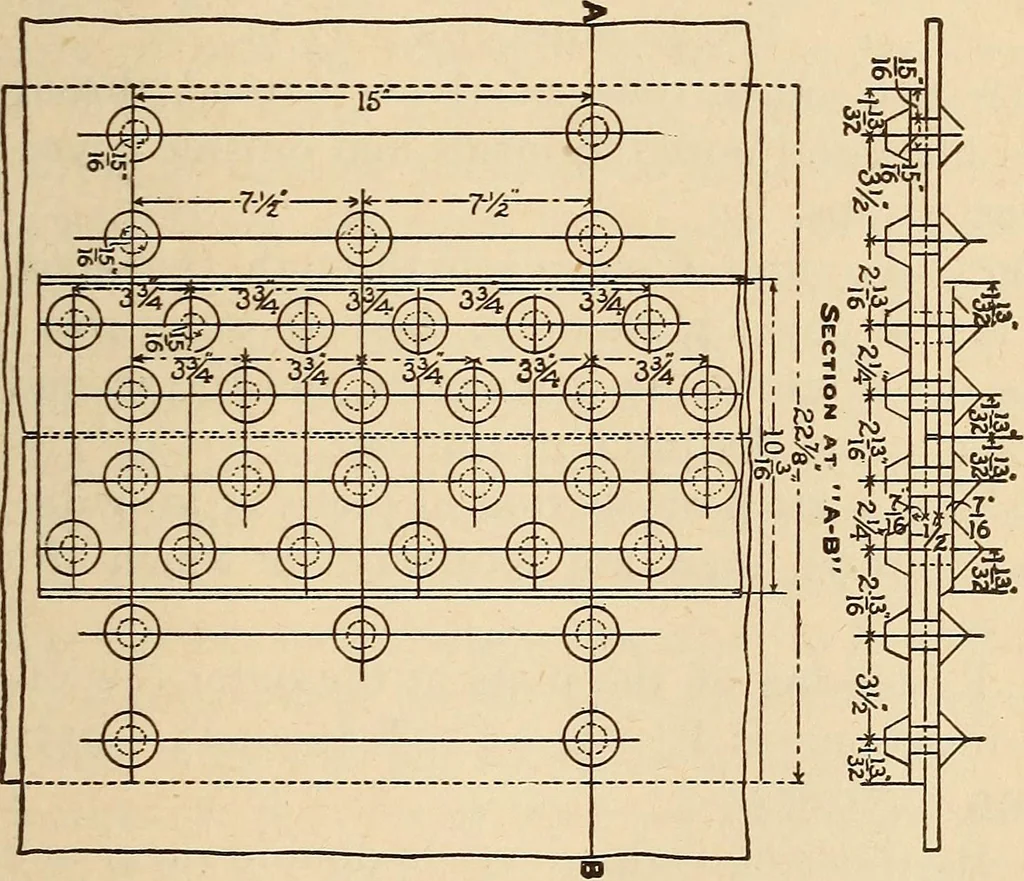

(.9375 X 2) X .4375 X 60,000 + .69 X 90,000 =190.068. 4. Crushing in front of four rivets and shearing onerivet. The resistance in this instance is 4D x T x C4- THE BOILER 69 lA X S, or .9375 X 4 X .4375 ^ 90,000+.69 X 45,000 =178,706. 5. Failure ma); be caused by crushing in front of fiverivets,… … Figure 23 The strength of the unit strip of plate before drillingis PX T x T.S., or 6.75 x .4375 X 60,000 = 177,187, ^^^the efficiency is 152,578 x loo-^ 177,187 - 86 per cent. With the constantly increasing demand for highersteam pressures, the necessity for higher efficiencies inthe riveted…
