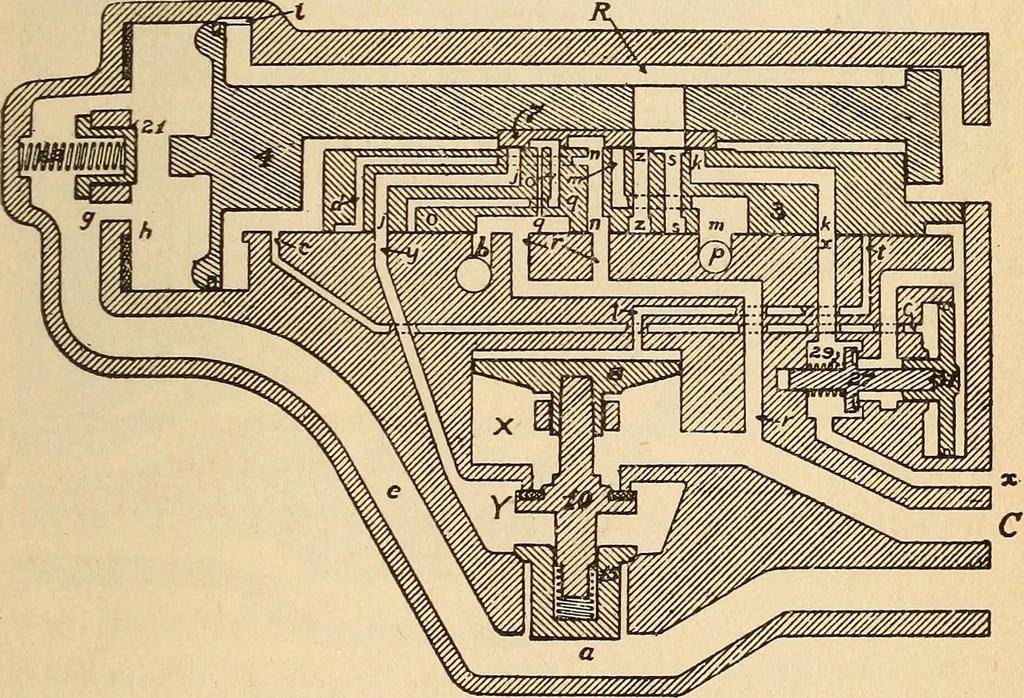

nder pressure may be released in a series ofsteps, or graduations, and the operation is known as grad- TYPE L TRIPLE VALVE 795 uated release, and may be repeated as desired, until thebrake-pipe pressure has been fully restored, and the ex-haust of air from the brake cylinder completed. Theamount of… … FIG. 355. GRADUATED-RELEASE-LAP POSITION EMERGENCY. When the brake-pipe pressure is reduced suddenly, orits reduction continues to be more rapid than that inauxiliary-reservoir pressure, the piston is forced to theextreme left and compresses the graduating spring. Theparts are then in Emergency…
