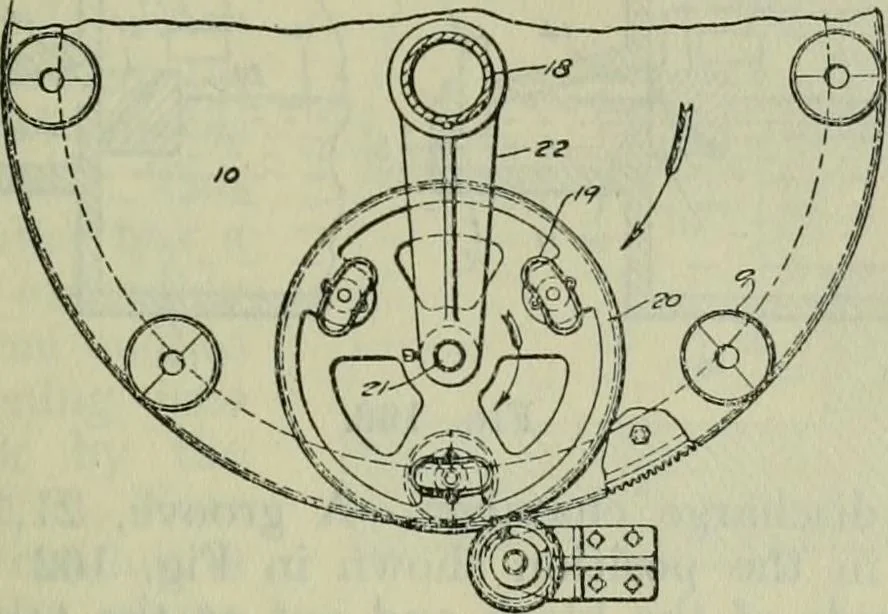

es over a machine with intermittent motion, but requiresspecial provision for directing the glass into the moulds as theypass the charging station. This may be accomplished by allowingthe glass to flow from the tank, through funnel guides travellingin a circular path above the moulds and remaining… … Fig. 161. is periodically withdrawn and the cup sections separated, thusallowing the gob of glass to fall into one of a series of funnel-shapedguides, 19, mounted on a rotary carrier, 20. This carrier may begear-driven at such a speed that the funnel guides travel at thesame linear velocity as the…
