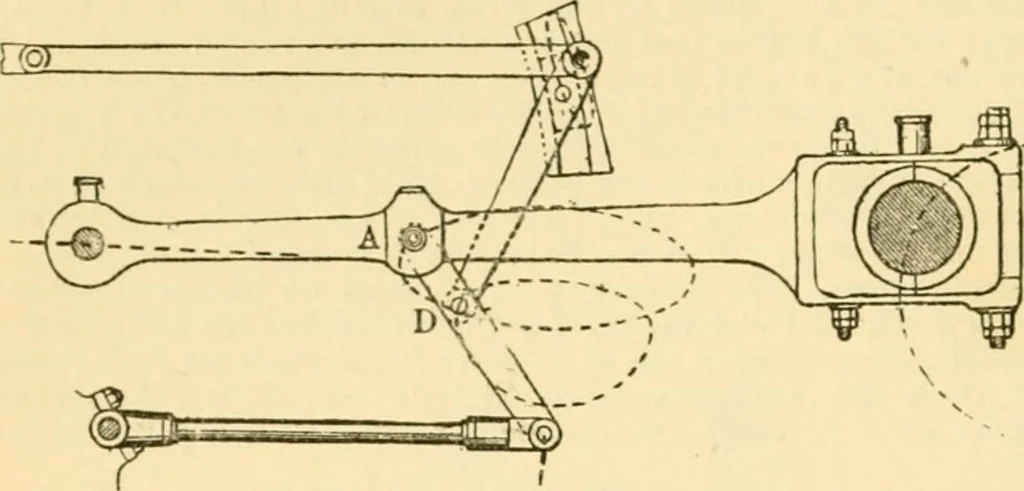

allows the fulcrum of the lever to move up anddown with the motion oftlie point A of the con-necting-rod. The forwardor backward motion of theengine and the rate of ex-{lansion arc controlled byinclining the slot to one orother side of the vertical,the central position corre-sponding with… … (lual in the two strokes. This error is corrected by attaching the end of the lever to the pointJ) of the vibrating link; for, wliile the point A on the connecting-rod describes a nearly trueellipse, as shown in Fig. 81, the point Z> describes a bulged figure, and the amount of thebulge is so…
