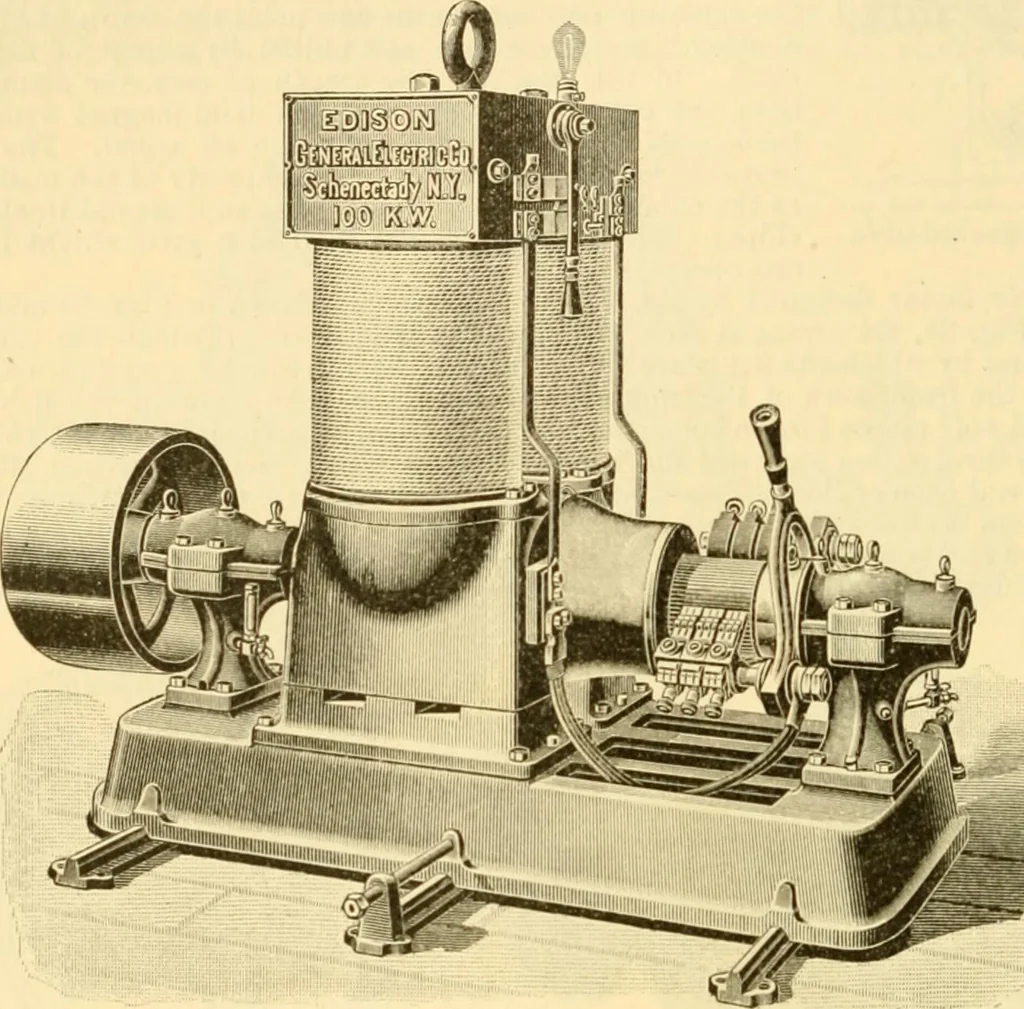

of which there is one for each liclix ; and the othersimilar ends are carried out to a common union, insulated from and carried upon the shaft. The Immisch Motor is of English manufacture, and embodies some novel features, espe-cially in the armature winding. Fig. 36 is a perspective view of the… … Flo. 38. —Edit-on motor. two adjacent segments of the commutator on the two rings, of which one has an angularadvance equal to one-half the width of the commutator bar. The two brushes, side by sideupon the two rings, are connected together, so that only one pair is shown in the figure.The Edisoti…
