Harmsworth, Alfred Charles William, Sir, bart · London Bombay : Longmans, Green, and Co. · leaf 242

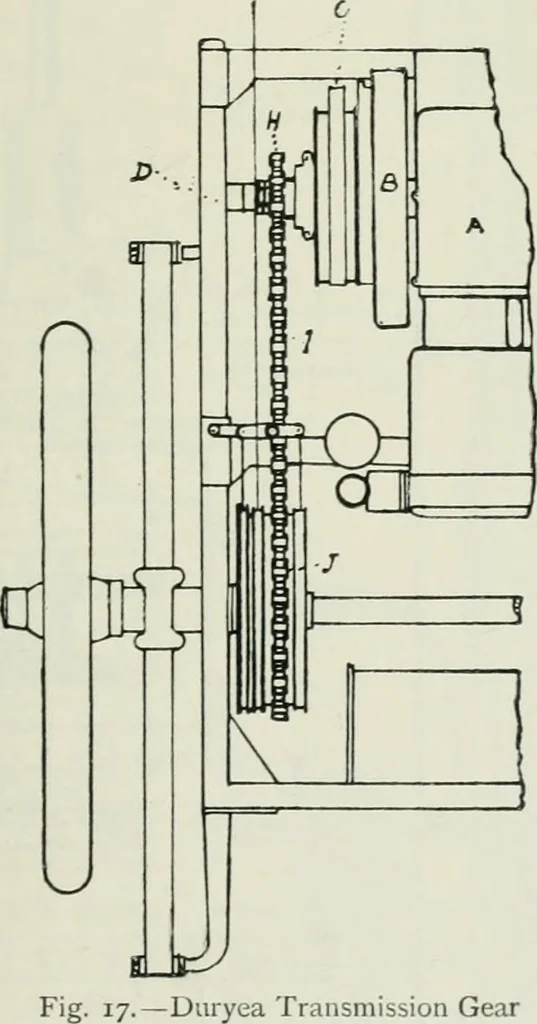

to tucked inside it, D the outer bearing of thegearing, h the driving sprocket, i the chain, and j the differen-tial on the drivinir axle. THE PETROL CAR 203 The large majority of cars to-day, especially those of theheavier and more expensive class—such as Daimlers, Napiers,Panhards, &c.—are… … Duryea Transmission Gear 18 and 19 I have taken the transmission sjstem ofthf 14 h.-p. Daimler to illustrate the type. This arrange-ment gives three speeds and a reverse. Others are more fre-quently arranged to give four speeds, but the system isthe same. Fig. 18 shows the arrangement looking…
Automobiles
