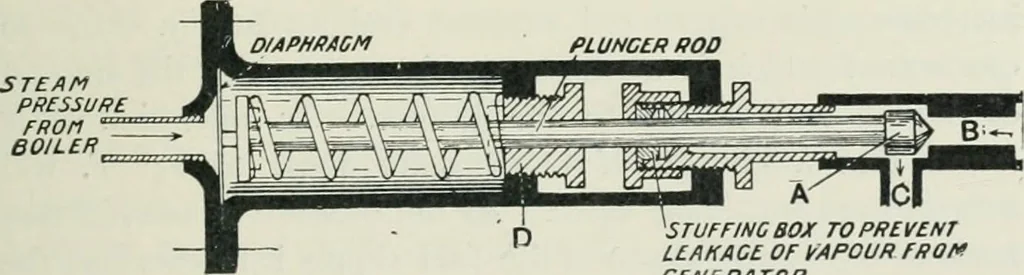

A Cremorne Steam Car The Automatic Fire Regulator.—Many steam vehicles arefitted with an automatic fire regulator, of which one is takenas an example, it being the same in principle as mostothers. Pig. 3 is a section of the device. A diaphragmor circular plate is pressed by the steam from the… … STUFFINGBOX TOPRC.VENTUAKACC. OF VAFOUR fROflfGENERATOR Fig. 3.—Automatic Fire Regulator conical head a, forward, so that it closes or partially closes theend of the tube b, through which the vapour passes intothe tube c on the way to the burner. When there is nopressure in the boiler the coil…
