NO sub X Deposited in the Stratosphere by the Space Shuttle Solid Rocket Motors (1975)

Pergament, H. S., Thorpe, R. D., Hwang, B · leaf 18

An illustration from NO sub X Deposited in the Stratosphere by the Space Shuttle Solid Rocket Motors, 1975, leaf 18

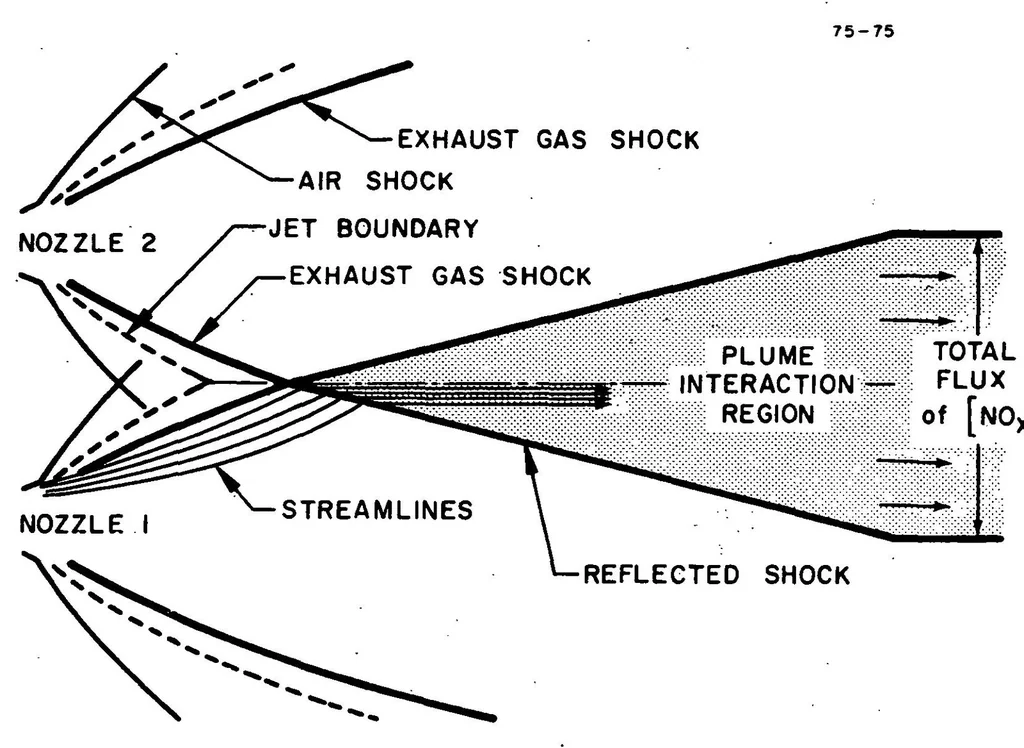

FIG. 11 MODEL OF THE SRM PLUME INTERACTION REGION 75-76 ASSUMED REFLECTED SHOCK BASE FLOW -» REGION ACTUAL REFLECTED SHOCK EXHAUST GAS SHOCK TYPICAL STREAMLINE FIG. 12 SRM PLUME INTERACTION REGION, INCLUDING BASE FLOW RECIRCULATION 13
