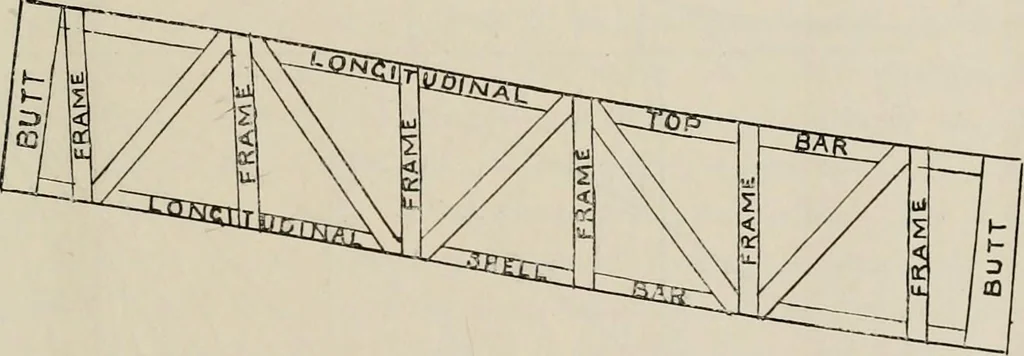

e Half Breadth on theirrespective stations with the edge of the mould, A, B, C, D, E, F, andG, fair to the sight edge just transferred from the Body. Securethem, perpendicular, by a light cross piece tacked at the bottom tothe floor, and attach them to each other by a fore and aft piece, P.The top… … with cross pieces for the position of the frames, and end pieces forthe butt straps. The latter should be arranged for the strap to clearthe vertical bars. This is the method generally adopted where thereis considerable twist, and absolute correctness is required. 1 hewatertight longitudinal butts…
