Naval architecture: a manual on laying-off iron, steel, and composite vessels (1898)
Watson, Thomas Henry · London; New York: Longmans, Green and co., [etc.] · leaf 40

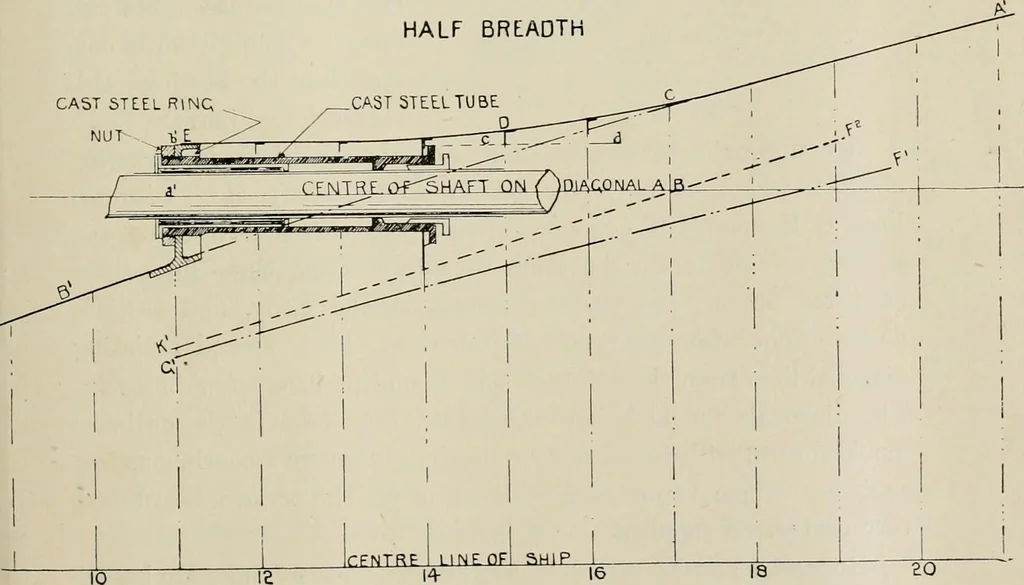

HALF BREADTH CAST STEEL R\NQ … 14 NAVAL ARCHITECTURE. AFTER BODY SECTIONS as indicated by dotted lines, and short frames looking aft made toform the loop, which are scarphed at the top and bottom to theordinary frames. Partial bulkheads or web-plated frames being fittedat intervals to stiffen the structure. It is a common…
Naval architecture -- Handbooks, manuals, etc · Naval architecture · Ships, Iron and steel
