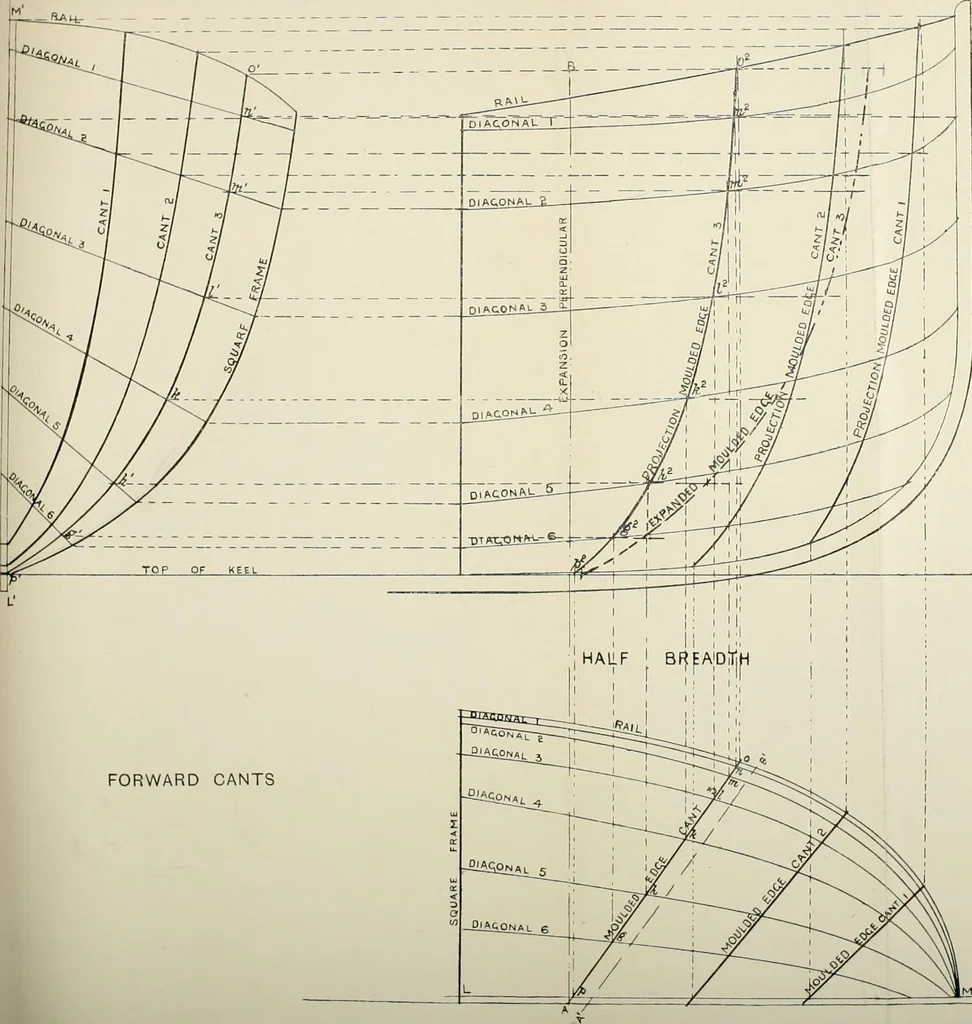

BODY Fig. 22. SHEER … FORWARD CANTS CANT FEAMES. 31 of half siding, etc., from A1 on the line of the bevelled edge, andtransfer into the Sheer on their level heights from AB, passing acurve through the spots, which will give the line of the bevelled edge.It is usual to place the true form of the cants forward on…
