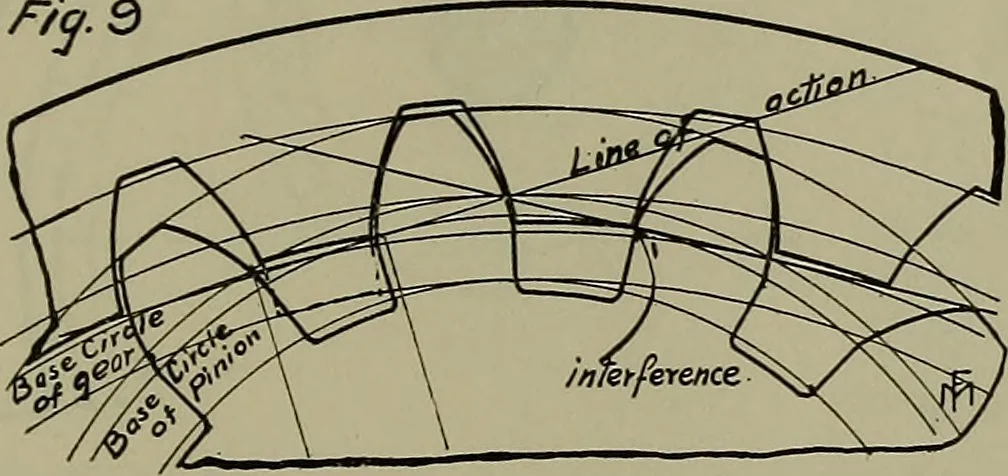

tooth as straight lines totlie line of centers coc at an angle of 15°. Draw theoulcr half ah of the face, one quarter of the whole MECHANICAL DRAWING 82 length of the tooth, from a center on the pitch line, and may best be drawn by joints, for the odontographicwith a radius of 2.10 inches dizidcd… … Internal Gears are those having teeth cut inside ofthe rim. Use the involute odontograph for the internalgear exactly the same as for external gears; but caremust be taken to cut off the tooth at the interferencepoint i of the pinion (See Fig. 9). The point of thetocth may be left off altogether or…
