Notes for mechanical drawing; arranged for the use of the students of the Mechanic arts high school and the Evening school of trades (1904)

Mathewson, Frank E. (Frank Elliott), b. 1869 · Springfield, Mass. · leaf 44

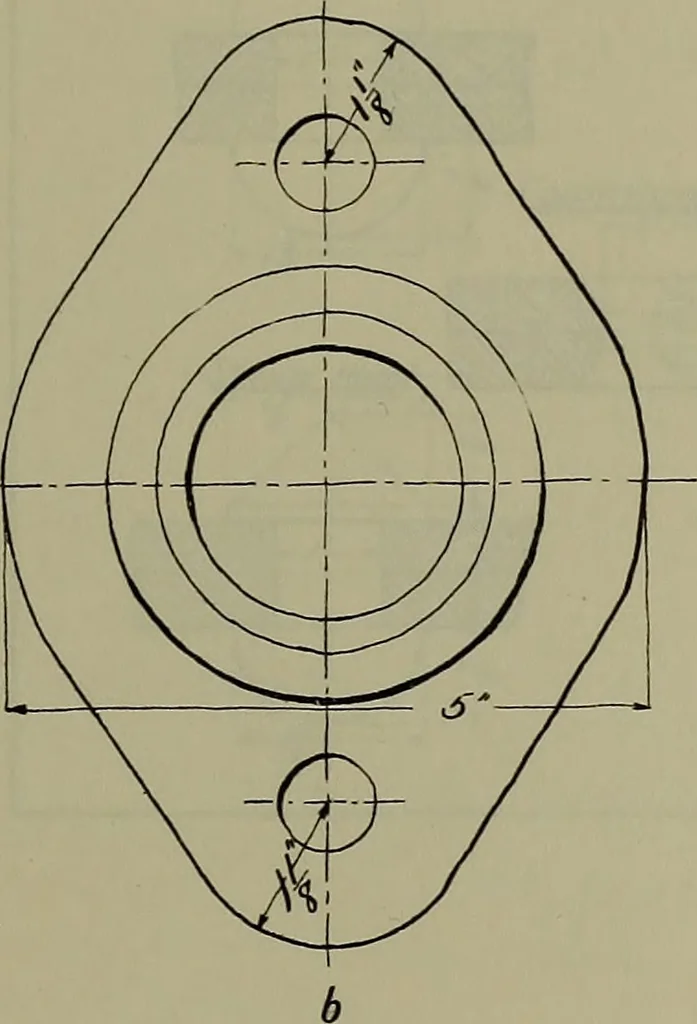

An illustration from Notes for mechanical drawing; arranged for the use of the students of the Mechanic arts high school and the Evening school of trades, 1904, leaf 44 — MECHANICAL DRAWING 19 Piston Rod Gland and BushingMake drawing io scale full size Section on line a-b a
