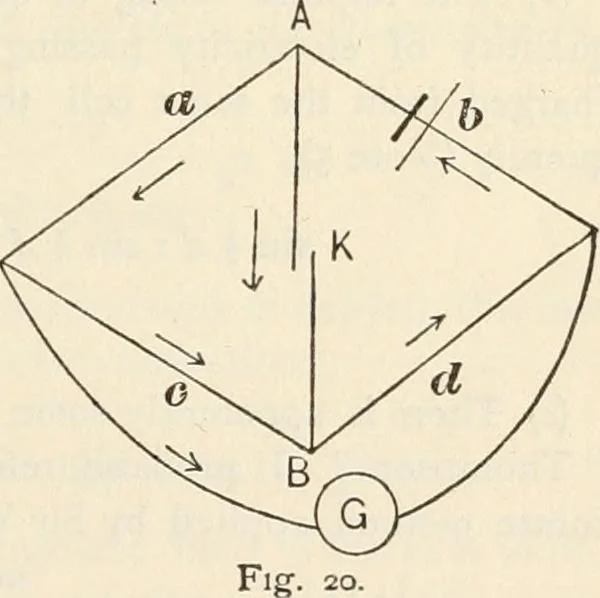

ent, it is at onceevident that a current passesthrough the galvanometer allthe time, and continues to doso unless the resistance in cand d becomes zero. Everychange of resistance in a, cor d will affect the currentflowing through G, as will alsothe opening or closing of thekey k when any difference… … the common relation of the Wheatstone bridge. If the galva-nometer is a sensitive one, the deflection will be nearly 90° and asin that position a change of current produces but little effect on 70 NOTES ON the needle it is necessary to reduce the deflection either by theuse of a magnet or by…
