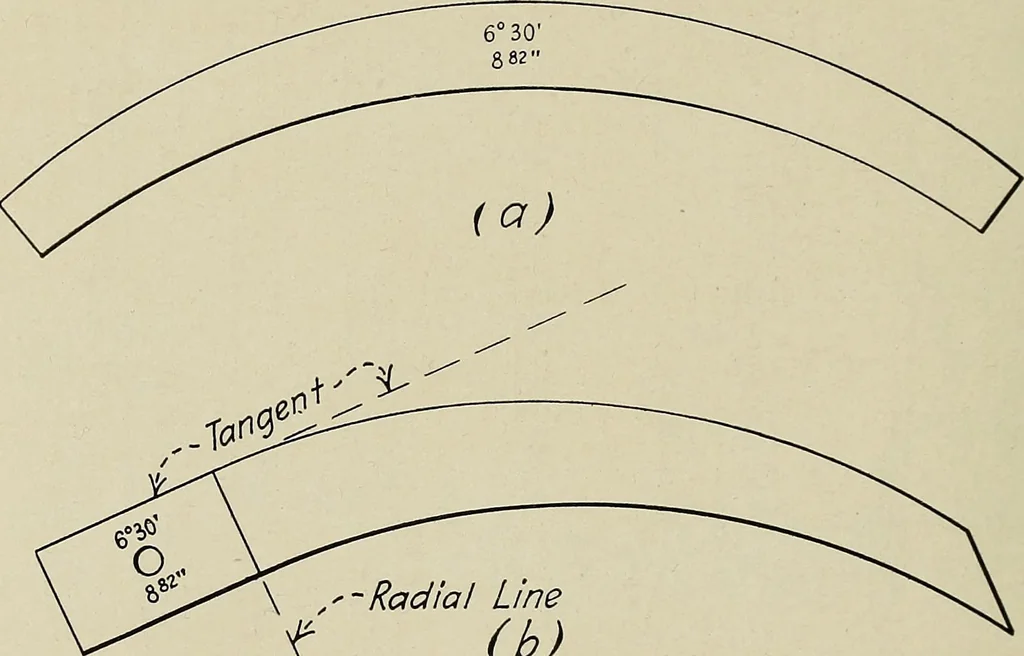

ng thepen is spun around by an impulse from the second finger applied atb. The pen is lifted slightly while the needle point is being movedto a new center. Some drop pens have a pencil point that can be in-serted in place of the pen, but most draftsmen draw the pencil circlesfreehand to save time.… … \ ,-Radial Line t (b) Fig. 34.—Railroad curves. the proper radius to represent one certain degree of curvature. Rail-road curves are made of cardboard, wood, hard rubber, celluloid orzinc, a set containing from ten to one hundred curves. Both curvededges are cut to the same radius, and each curve…
