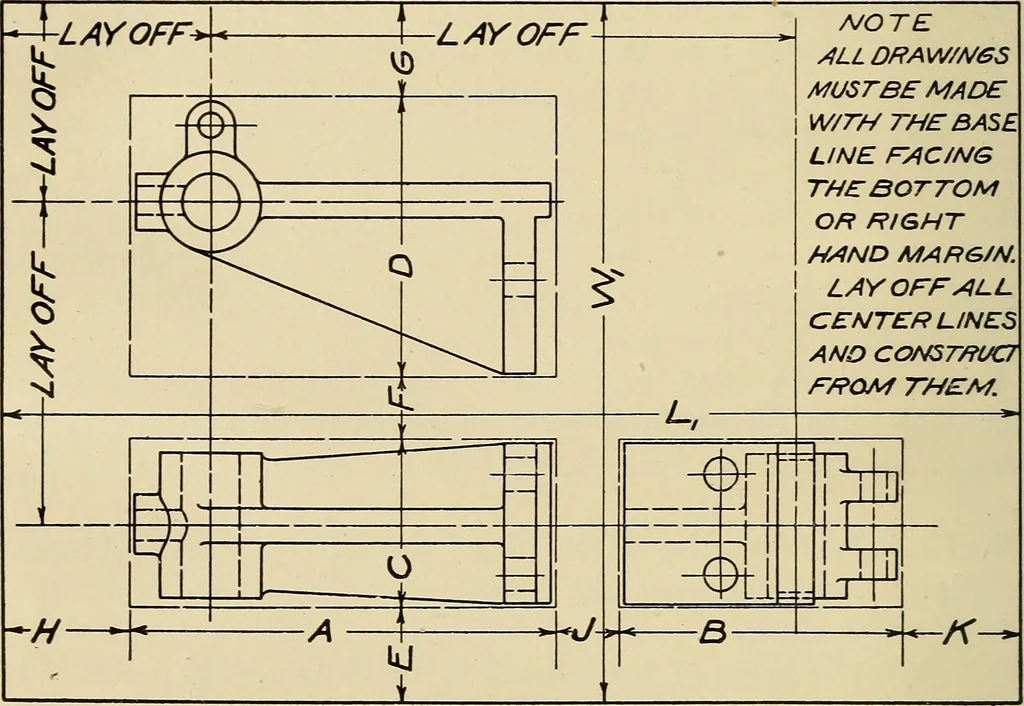

not be less than | or more than IJ,depending on the space required for dimensions. The rectangles previously referred to in Fig. 12 are not to beused in the actual laying out of the views. 2. The distance between views and margins is determinedgraphically as follows: Lay off from the left margin a… … NOTE /JLl DRAW/A/6SMUST BE MADEW/TH THE BASELINE EAC/NGTHE BOTTOM OR RIGHTHAND MAR&/N.LAY OFF ALLCENTER LINESAND COHSTRC/aF/?OM THEM. Fig. 12. to the right-hand margin. This remainder is divided equallybetween the two sides (H and K), but is not figured closely. 3. To lay out a drawing the…
