Pattern-making machinery manufactured by Richards, London & Kelley, Atlantic works, Philadelphia (1873)
Richards, London & Kelley, Philadelphia. [from old catalog] · [Philadelphia, Gillin, M'Guigan & White, steam-print.] · leaf 28

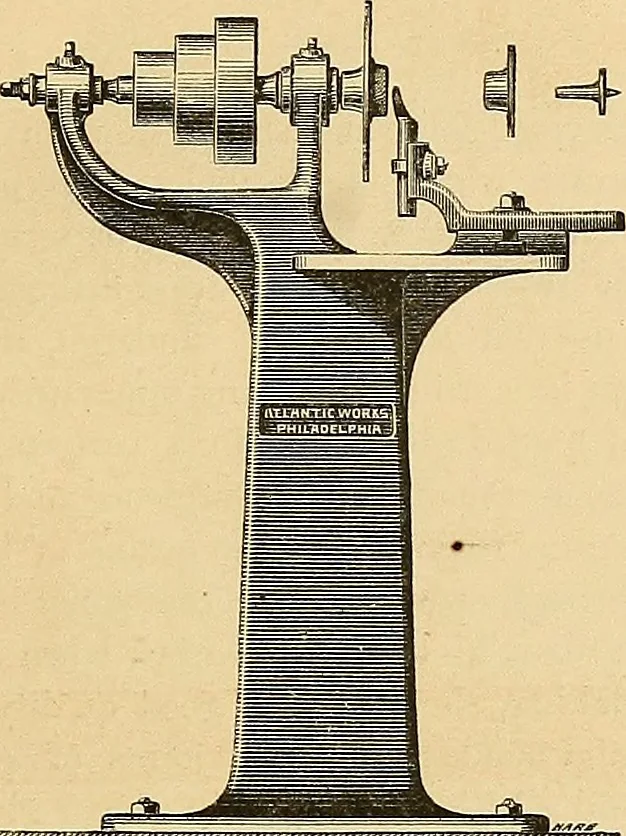

and two shear stands, a countershaft fitted with two pairsof tight and loose pulleys, so that the lathe can be driven to the right or left. When the Lathe heads are sold without the frame, the ordinary stands andrests are furnished with bolts to suit a frame 12 inches deep. For prices, see… … Scale, Jj,. PATTERN MAKERS FACE LATHE. For turning hubs, bosses, core prints, and other face work to 16 inches indiameter, a strong compact machine occupying but two feet square upon thefloor. The spindle is of steel with brass bearings; the cone pulleys of iron. Each machine is furnished with a…
Patternmaking machinery
