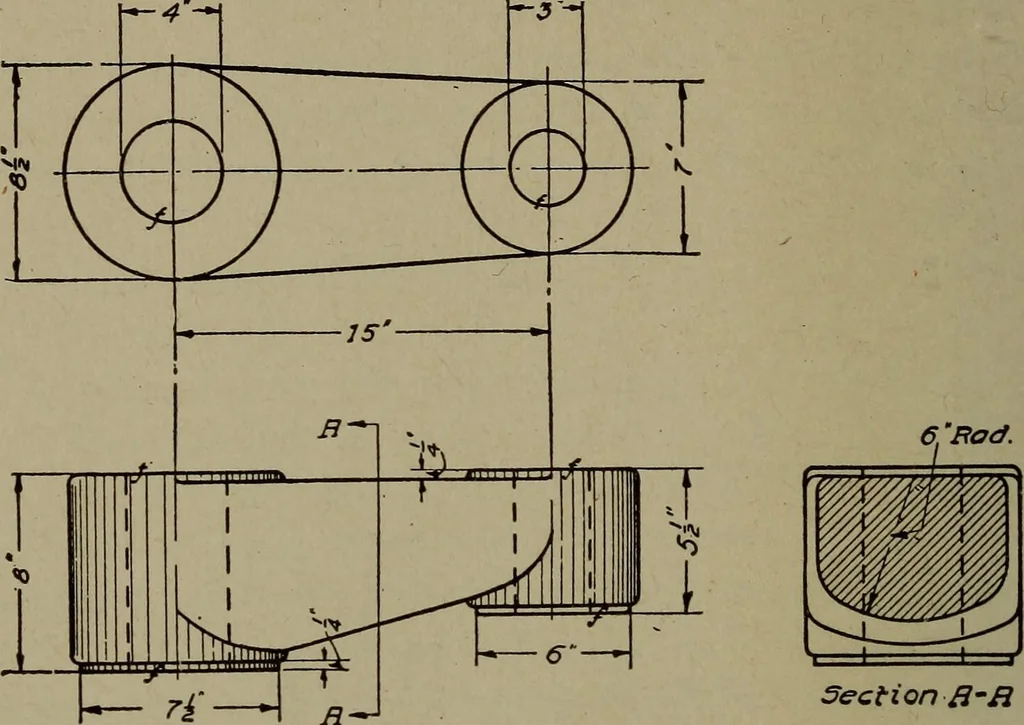

k, gluing heart sides andbark sides of each piece together, as shown in Fig. 193. Dress thestock true on one side and edge for a working face and a workingedge. Machine-plane the opposite side and edge parallel to thesefaces. Lay out the plan of the crank on one face and also a sideelevation on one… … Fig. 192. Detail Drawings for Heavy Engine Crank Section BR a, Fig. 193, and leave stock at b so as to keep the top of the stockparallel to the band-saw table when sawing the line c. This stock b may be removed with achisel after all band-sawwork is completed. Havethe band-saw table tiltedwhen…
