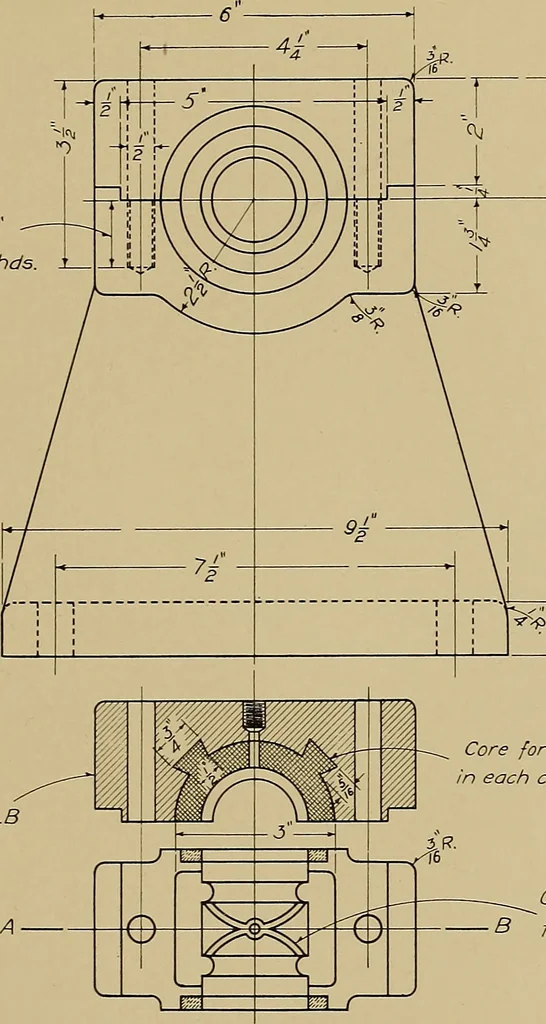

cated. The oil supply for the bearing is furnished by an oil cup which isscrewed into the top of the cap. Where the caps are fitted into the frame, no draw is allowed;this is an additional precaution to keep emer\ dust away from thebearings. Do your work well. Do not be satisfied with what you… … ^ <3o Drill g^ for g pipe tap 1o suit 0 Oii Cup.[See pageJ66Machinists Supply Caf.\ L. ,L \<r ■/6 Core for two circular babbitt ancfiorsin eacii cap and bfnring frame Oil Grooves in caps and bearingB frame Si deep X g wide
