Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1916)

Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 208

An illustration from Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice, 1916, leaf 208

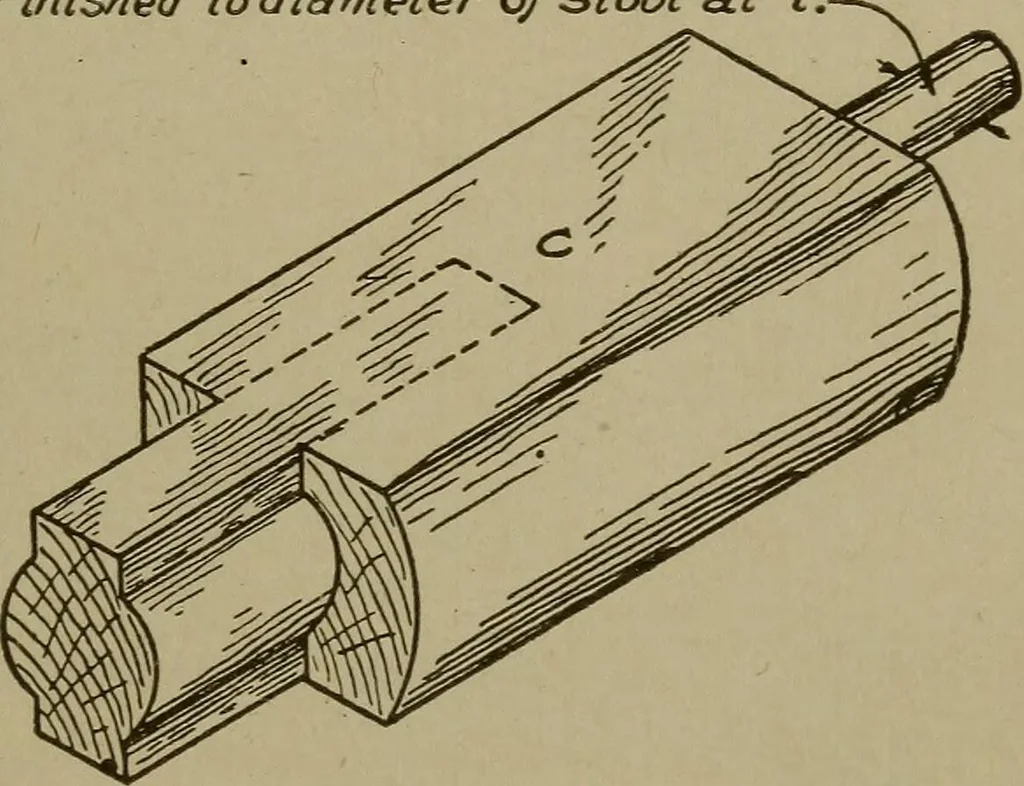

Fig. 320. Casting forPattern c, Fig. 312 Fig. 321. Master Pattern for Part c with the levers and links, Fig. 325, do not require a pattern, butaccurate sketches or drawings, preferably full size, should be madeby the pattern maker for these parts for the use of the metal-pattern maker. Owing to the…
