Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1916)

Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 237

An illustration from Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice, 1916, leaf 237

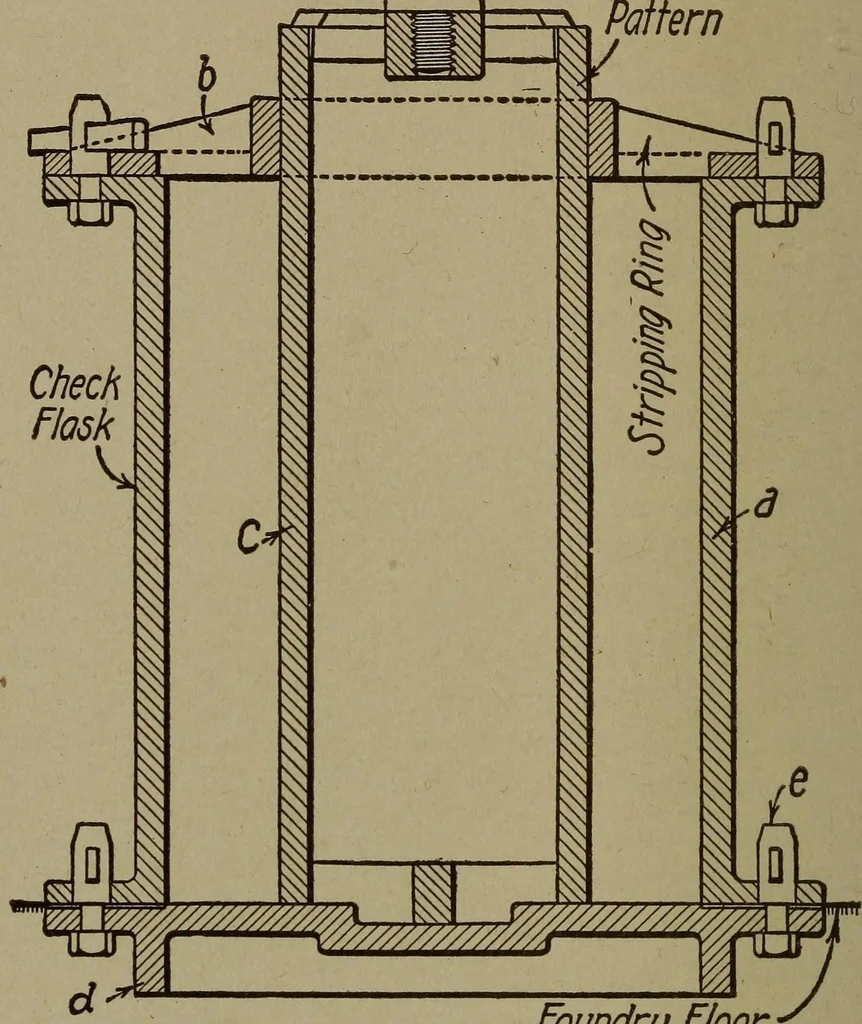

Fig. 376. Pattern Being Drawn throughStripping Ring 218 PATTERN MAKING Lifting Eye -© Roll^ Pattern … Foundry Floor Fig. 377. Section of Cheek Mold on Mold Plate and Stripping■ Ring in Place
