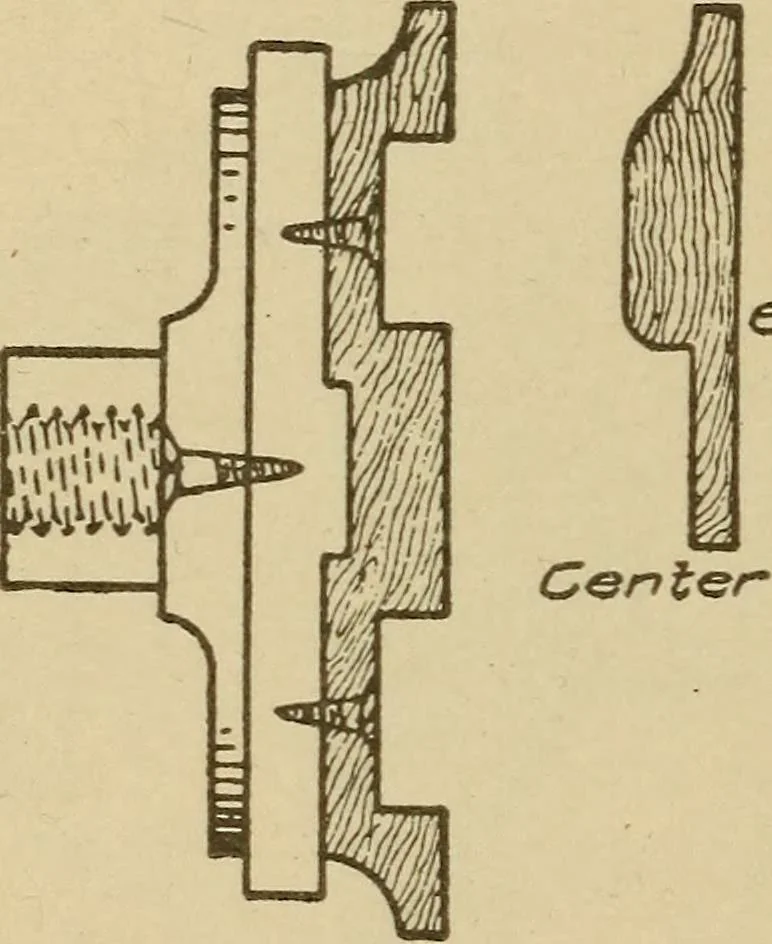

Fig, 105. Section Showing Joint of Sheave Tit tern PATTERN MAKING … Fig. 166. Method of Mounting Sheave Pattern on Wood Faceplate A cross-section of the pattern at this stage of construction is shown in Fig. 165. A disk or chuck of wood 5^ inches in diameter is now screwed to the iron faceplate, or the screw chuck, and turned off true onthe face, with a projection…
