Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1921)
Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 37

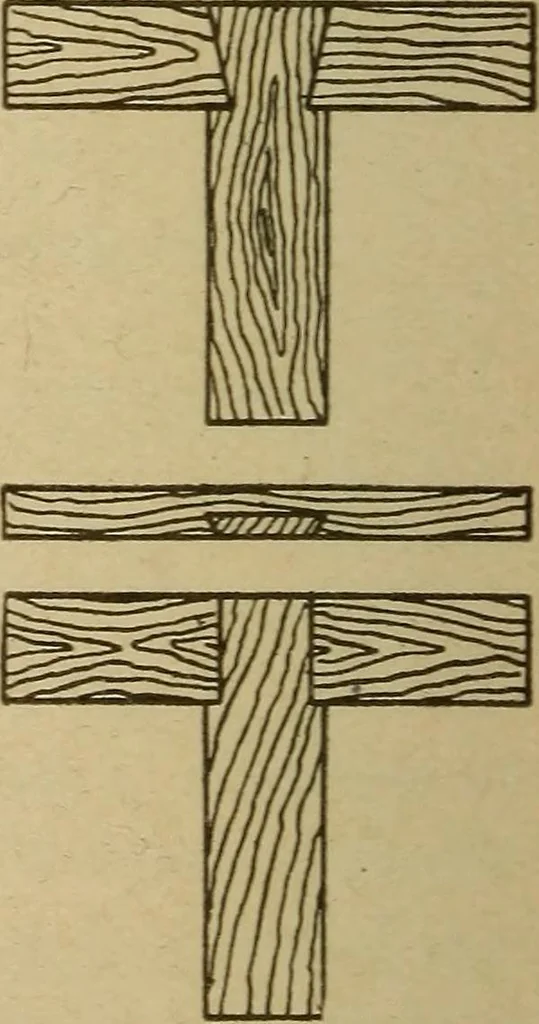

Fig. 44. Half-Lap Joint Fig. 45. Dovetail Joints The shoulders or the ends of the openings must be cut \sithback saw. The opening is then cut out and the shoulders PATTERN MAKING 23 smoothed with a wide chisel, and a perfect fit obtained by con-tinued trials. The two dovetail joints, shown in Fig.…
