Perspective and geometrical drawing adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thomas H. [from old catalog] · Toronto, W. Briggs; · leaf 38

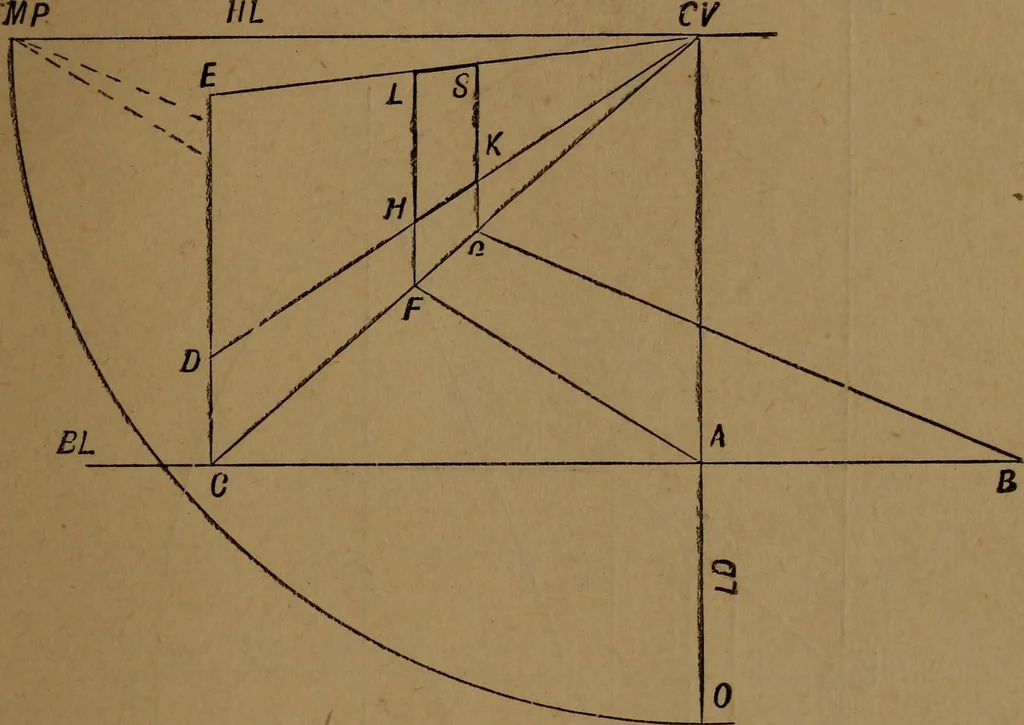

_|_ to G.P. and 1 above it.Other specifications as in last example. Construct figure as before. Take C \y (6) to left of A,take B V (4) to right of A, erect CE _j_ to AC at C and l^{r^) in height, and mark off* D Y (!) above C; join E C.Y.D C.Y., C C.Y., A MP and B MP. Through E, G draw ELand GS… … Fig. 17. Uxamph 3,—^Dra^ a square 4 side directly in front, paral-lel to G.P. and 3 above it, and _|_ to P.P. and 3 within itwSame specifications as before. Construct figure and find M as before. From A measureoff l^ both ways to B and C (BC = 4) ; erect perpendicularsBF and €G, each f (3); join…
Geometrical drawing · Perspective
