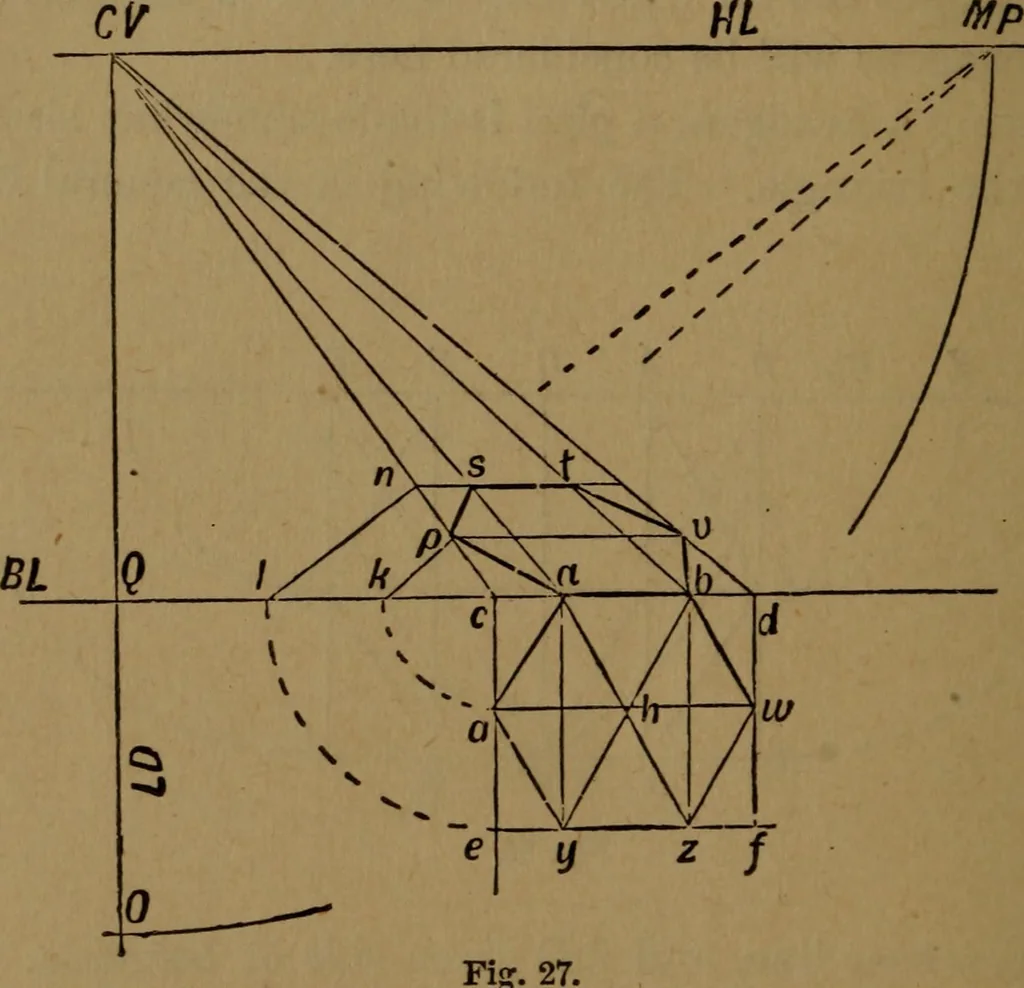

rawnperpendicular to the ground plane, with a side or an angletouching it; and a side or an angle may touch the P.P. or bewithin it. (Fig. 26.) If a side touch the P.P., the extremity of it determines the 48 DRAWING. distance of the hexagon to the right or left. When an angletouches the P.P., that… … Let H.L., B.L. and L.D. be drawn. Take C.Y., find O andMP; take AB 4 to E. of Q, make AB = 2^ On AB con-struct equilateral triangle ABH, and produce to Y, Z, makingHZ and HY each equal BH; join AY and YZ, and produceYZ both ways. Through H draw GHW parallel to YZ;through C draw CE parallel to AY;…
