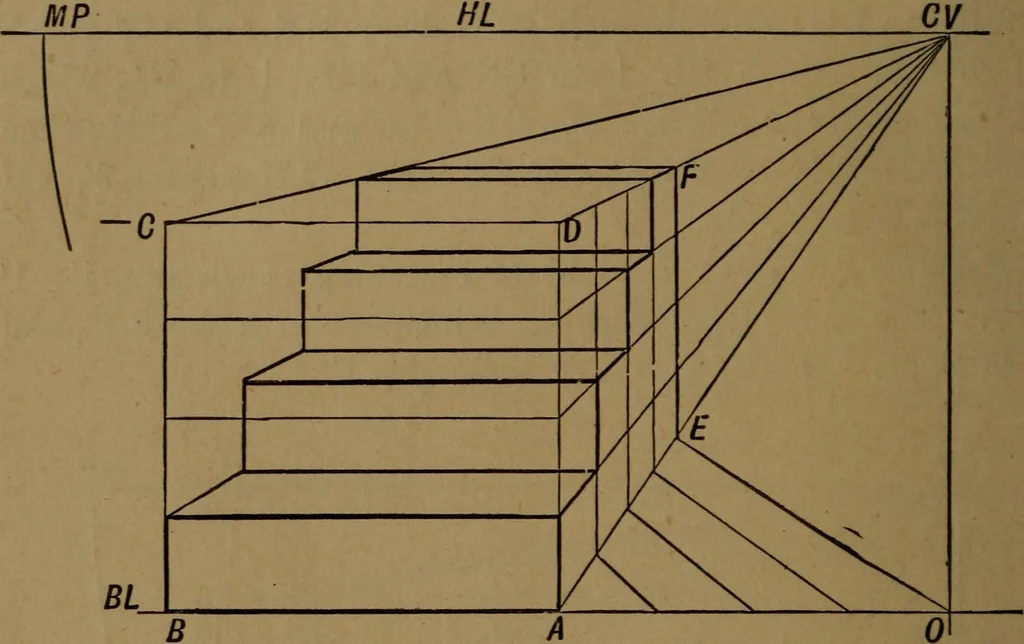

Fig. 40. Here take A, i to right of E, and B 4^ to right of A; onAB describe square ABDC, and divide it into sixteen equalsquares; join each angle, as shown in figure, with the C.Y.;join also E MP, cutting A C. V. in P; draw FG parallel toAC, GS J_ to GF, etc. Then FG - AK = 1, tmd GS = KJST= r,… … Fig. 41. Draw H.L., B.L., and find C.Y. and MP as before. TakeA, i to left, and B, 4 to left of A; on AB construct squareABCD; join O MP; and on AE, complete square ADFE;then draw steps similar to preceding example. Exercise IX. (H = 6^ L.D. = 4; scale l = r.) 1. Draw a cube, edge 4, 2 within P.P.…
