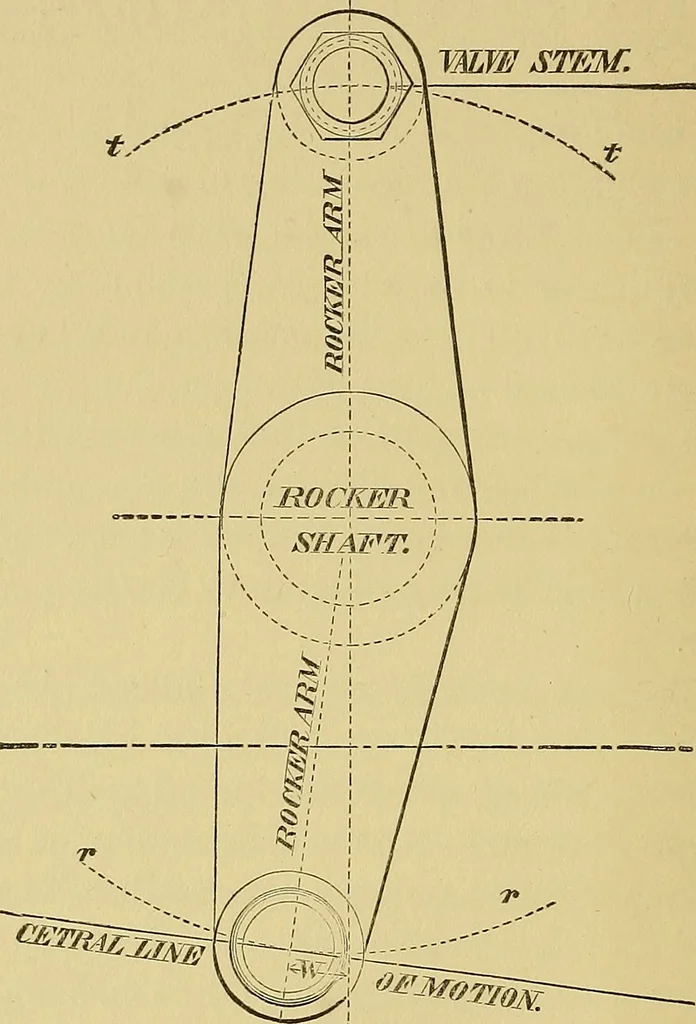

l line of the valve stem, or a linesufficiently above the same to equalize the vibration of thestem, and the central line of the motion. Radial lines fromthe points of tangency will then give the relative positionsof the arms. This method of correction is preferable to the former inrespect to the… … TV. So long as the angular advance of the eccentrics islaid off from a line at right angles to the central line of thelink motion, the latter can be arranged at any inclinationto the piston motion, without affecting the action of the link.These central lines were made to coincide in Fig. 22,…
