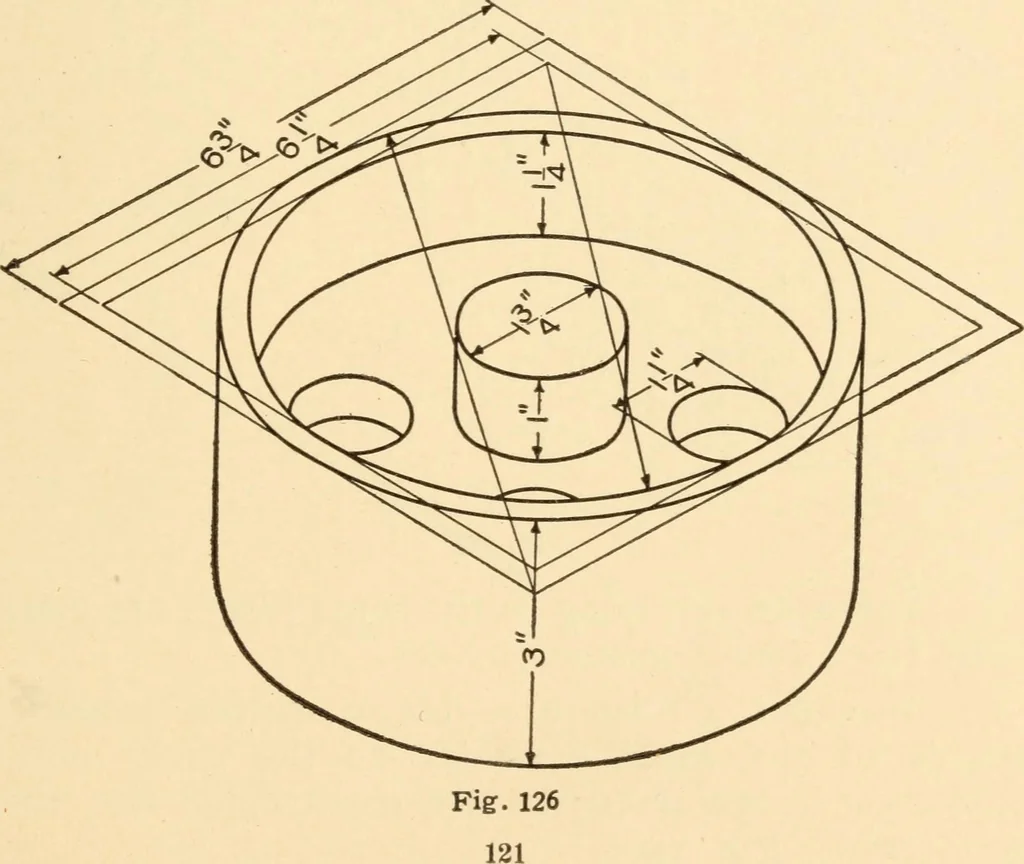

r perspective representation, andfor practical purposes it has come to be eminently use-ful to the artisan in clarifying hidden constructions.Among draftsmen it has supplemented the freehandperspective sketch on account of the comparative easewith which the picture is made by the instruments. The… … 122 A PRACTICAL COURSE IN orthographically, make 30° to the horizontal in theisometric construction. c. Non-isometric lines of edges making other thanright angles must be laid ofif orthographically first andthen transferred to the isometric drawing. This dis-torts the true length of non-isometric…
