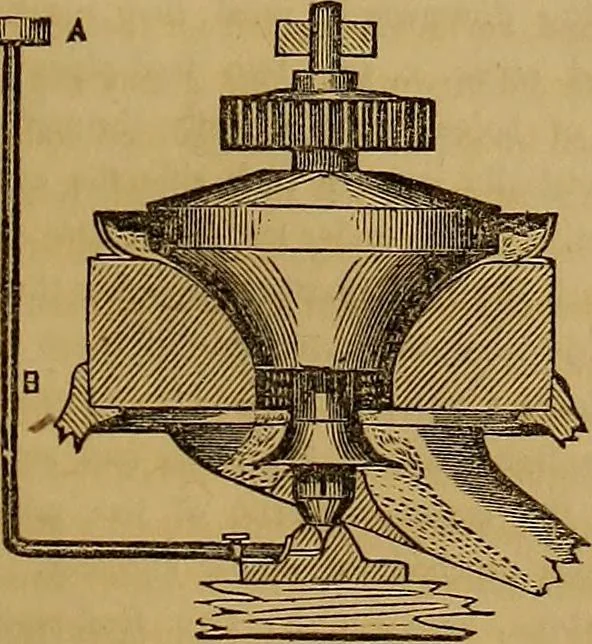

ng the edge of a ruler, whilst the wirecarrying the pen is left toFi?- 3. find its way from its initial angular position, to that ofa line in the same plane asthe slider ; and, in doingthis, the pen describes thecurve we have represented.Fig. 3 is a vertical sectionof a millstone arranj:on this… … also shows the adaptation of the principle to footsteps, togetherwith a new system of lubrication of these surfiices so liable toextreme abrasion. The oil supply is kept in an elevated vessel, a,whence a pipe, b, proceeds downwards to the footsteps, uponwhich a pressure is thus constantly kept by…
