The practical draughtsman's book of industrial design, and machinist's and engineer's drawing companion: forming a complete course of mechanical, engineering, and architectural drawing (1866)
Armengaud, Charles A., 1813-1893, Armengaud, Charles, 1813-1893, [from old catalog] joint author, Amouroux, Jules, [from old catalog] joint author, Johnson, William, 1823-1864. [from old catalog] · Philadelphia, H. C. Baird · leaf 198

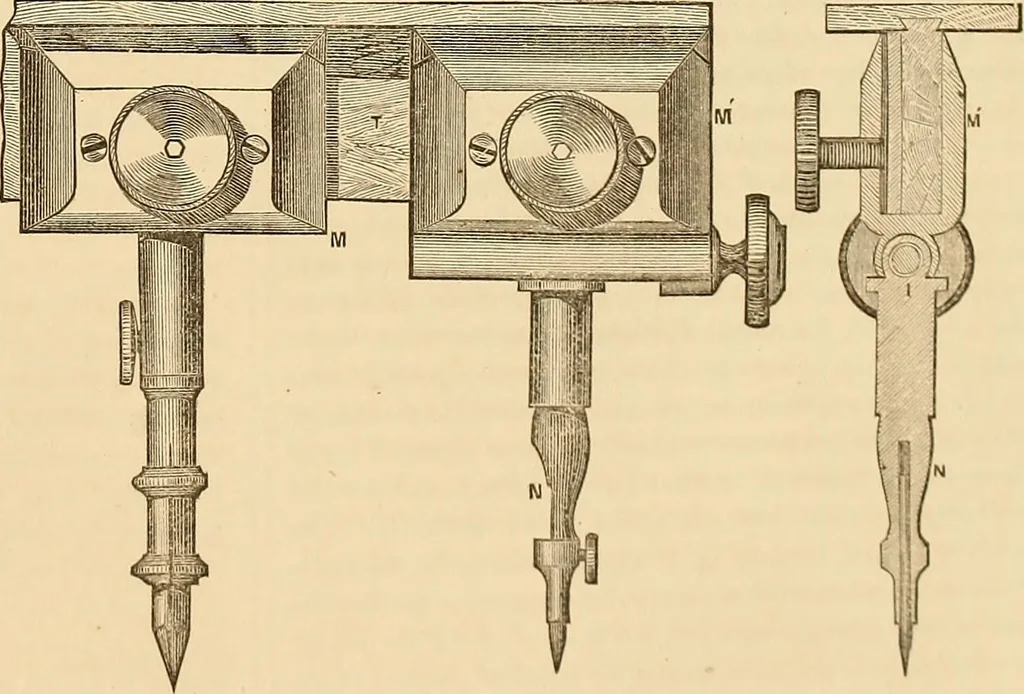

the side ; butto prevent the point of the screw from injuring thebar, a loose plate of metal is interposed next to thebar, as shown in the section, fig. 24. The socket,M, is in a solid piece with its pen, or pencil-holder ; but the centre leg, n, is in a separatepiece from its socket, m, and is… … horizontal screw passage, or nut, to rereivo the .screw spiiuilo,I, which is held hy Jin eve at the end of the sm-ket frroovo,iiud is acluuLeJ I,) iiie.iui of a button on tlic oul.-<id». Uy 190 THE PRACTICAL DRAUGHTSMANS turning the screw, i, in either direction, the centre leg may beadjusted…
Mechanical drawing
