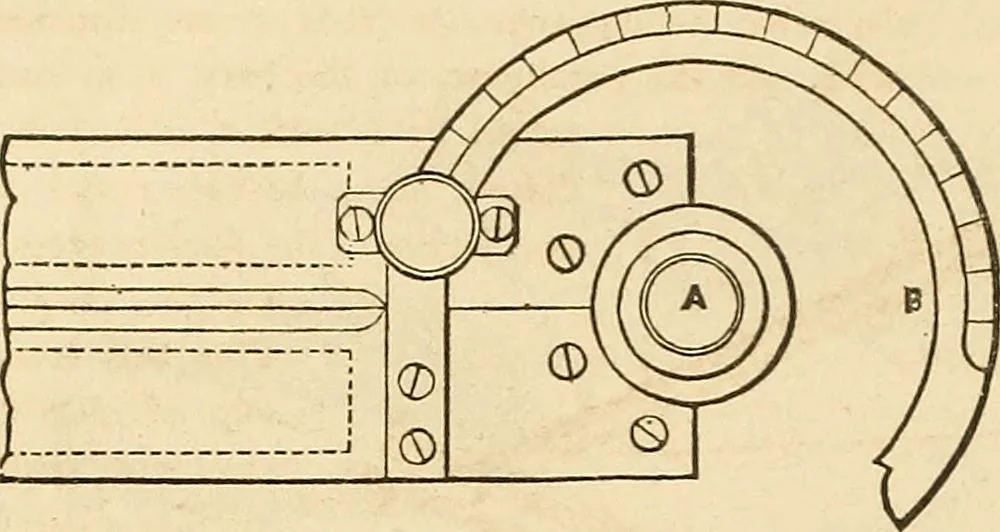

n. Mr. Miller, of Woolwich, has devised a very useful modifica-tion of the common jointed rule. This instrument is termed aradiator. and our engraving, lig. :>ti. represents a portion ofit in plan, whilst tig. :!7 is an end elevation. The inner edges ofthe legs are used us rulers, and the joint… … < with sockets, which admit of any length of ruler being used.The radiator is applicable to the following purposes :— For drawing lines in perspective, or geometrical drawing, to apoint or centre; for setting off angles as a protractor; for aright-angled triangle, or any other angles ; and for…
