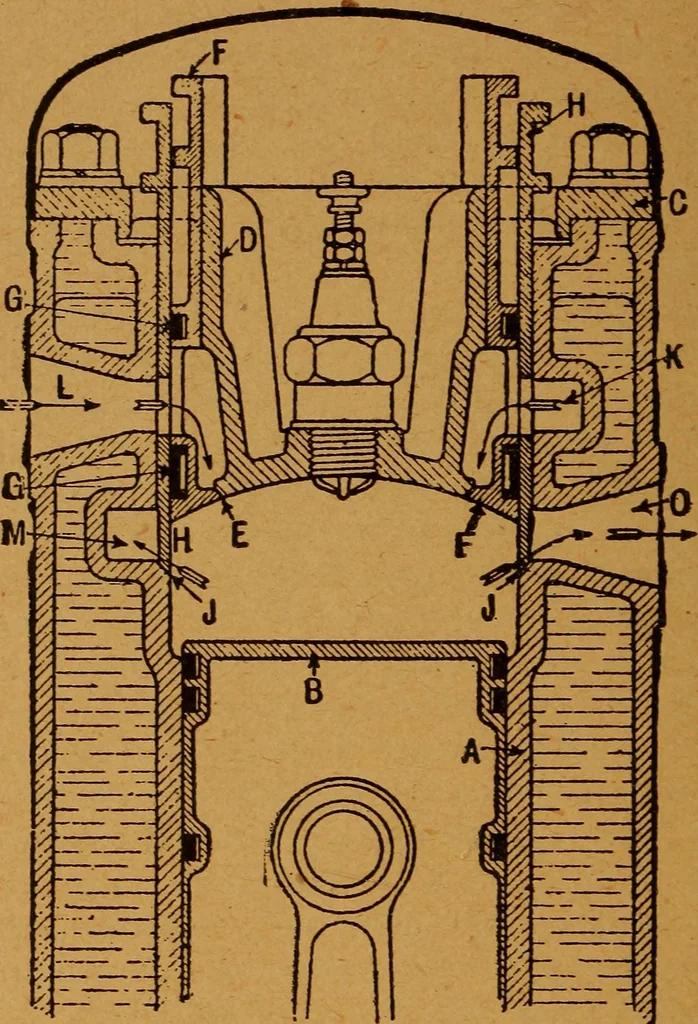

e oil in the crank case remains warmlonger than any other part of the engine. 126 GAS, OIL AND STEAM ENGINES (50) Reeves Slide Sleeve Valve. A simple and compact form of slide sleeve valve gear hasbeen developed in England that is of more than passing interest.It permits of a maximum area for both… … Fig. 34. Reeves Slide Valve Gear. is balanced at the end of the working stroke. The combustionchamber is nearly hemispherical in shape which reduces theheat loss to the walls. Referring to the section of the end of cylinder given in thediagram, (34) A is an open-ended water-jacketed cylinder…
