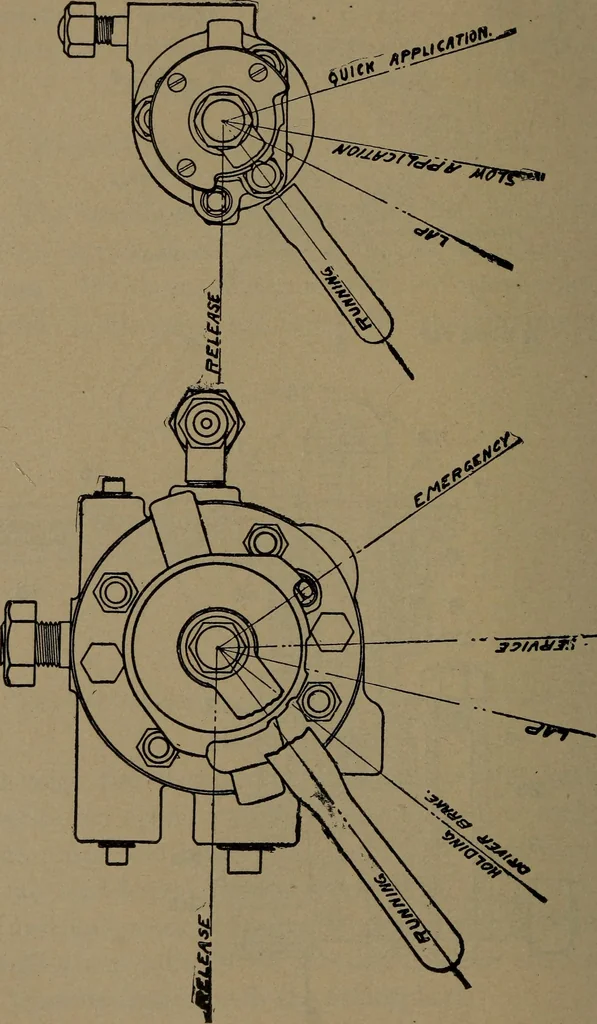

Fig. 77.—S-6 Independent Brake Valve, Reference Diagram.16 242 k • I 19 f … J- M o LAP POSITION, S-6 TYPE 243 SLOW APPLICATION POSITION, S-6 TYPE 655. To apply the brakes gradually with the S-6 in-dependent brake valve, move the handle to slow applica-tion position. Port m will now register with port d, allow-ing air to flow from the reducing-valve pipe through portand…
