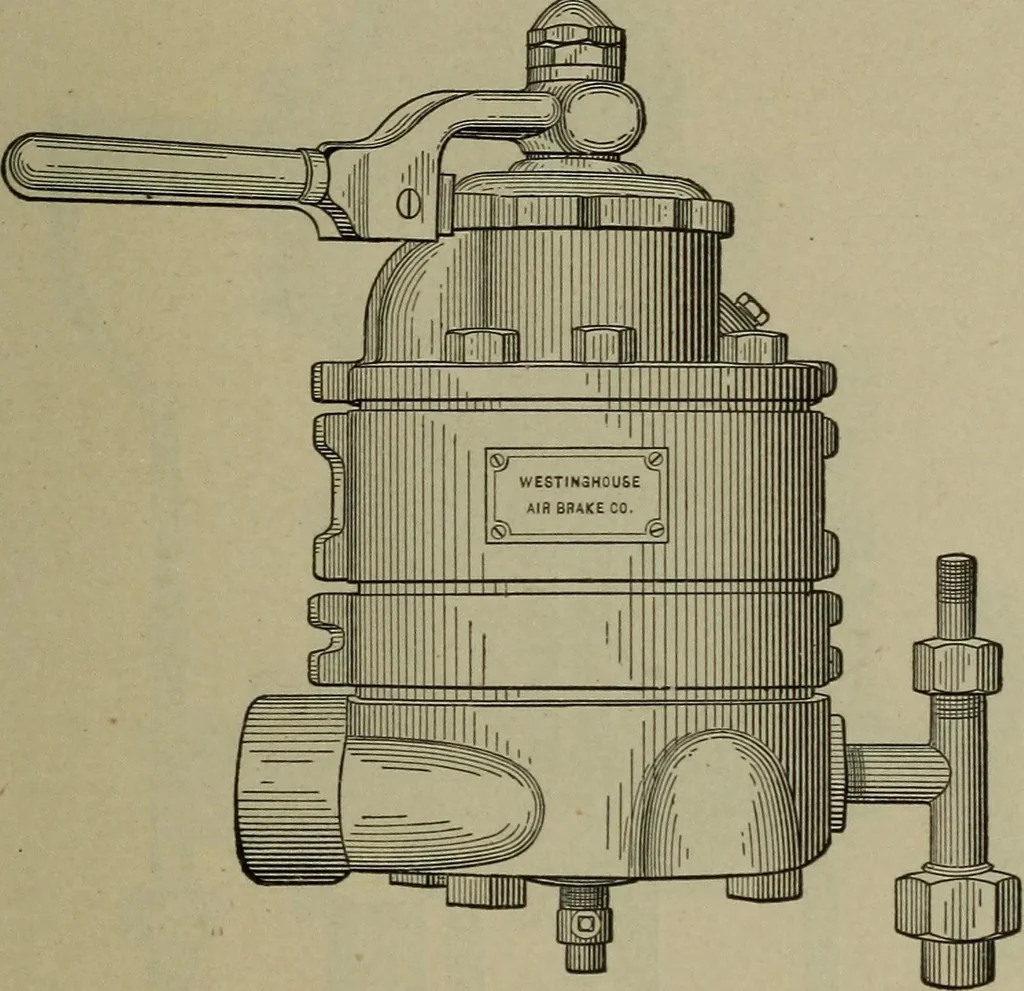

Fig. 68.—E-6 Safety Valve. H-6 AUTOMATIC BRAKE VALVE 225 614. This is necessary in order to secure a perfect opera-tion of the distributing valve. 615. This brake valve has six positions. They are,beginning at the left, 1st, release; 2nd, running; 3rd,holding; 4th, lap; 5th, service; 6th, emergency. … Fig. 69.—H-6 Automatic Brake Valve. 616. The names and numbers of the parts of this brakevalve are as follows:—2, bottom case; 3, rotary valve seat;4, top case; 5, pipe bracket; 6, rotary valve; 7, rotaryvalve key; 8, key washer; 9, handle; 10, handle latch 15 H-6 AUTOMATIC BRAKE VALVE Fig. 70.—H-6…
