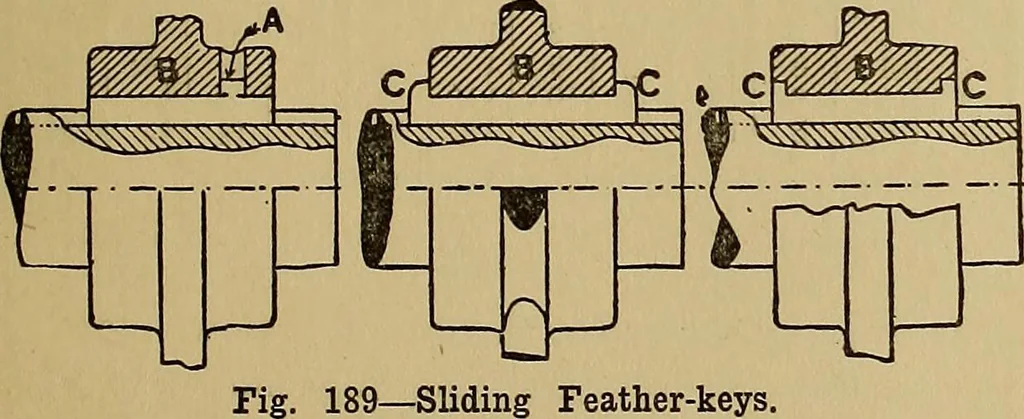

Fig. 188—Gib-head Key. Sliding or Feather Keys. The function of asliding or feather key is to secure a piece to ashaft, so far as to prevent the one from rotatingwithout the other, but at the same time allow of arelative motion in the direction of the axis of theshaft. This form of key has no… … 189—Sliding Feather-keys. generally secured to the piece carried by the shaft,in which case it is made a sliding fit in the key-way of the shaft. But the feather-key may be fixed to the shaft and made a sliding fit in the piece car-ried by it. Examples of feather-keys which slide in the key-way of…
