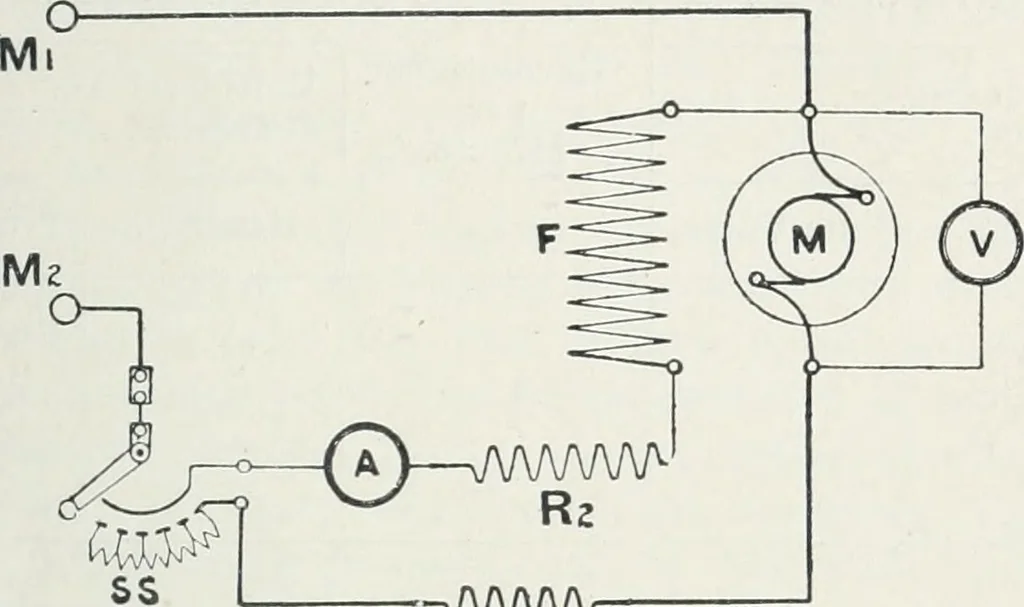

throughout the experiment l)y varyingthe resistance R^ when necessary. Beginning with the maximum exciting current,reduce its value gradually. For each value of the exciting current take readings ofexciting current, speed, and armature voltage (whichshould remain constant). CURRENT IN THE MOTOR… … -WWWRi Fig. 42.—Variation in Speed ok Motor with Excitation. Ml M2 Supply mains.M Motor armature. Motor field windings. Adjustable resistance for regulating voltage atarmature terminals only necessary wherevoltage of supply is not constant). Adjustable resistance for varying excitingcurrent.…
