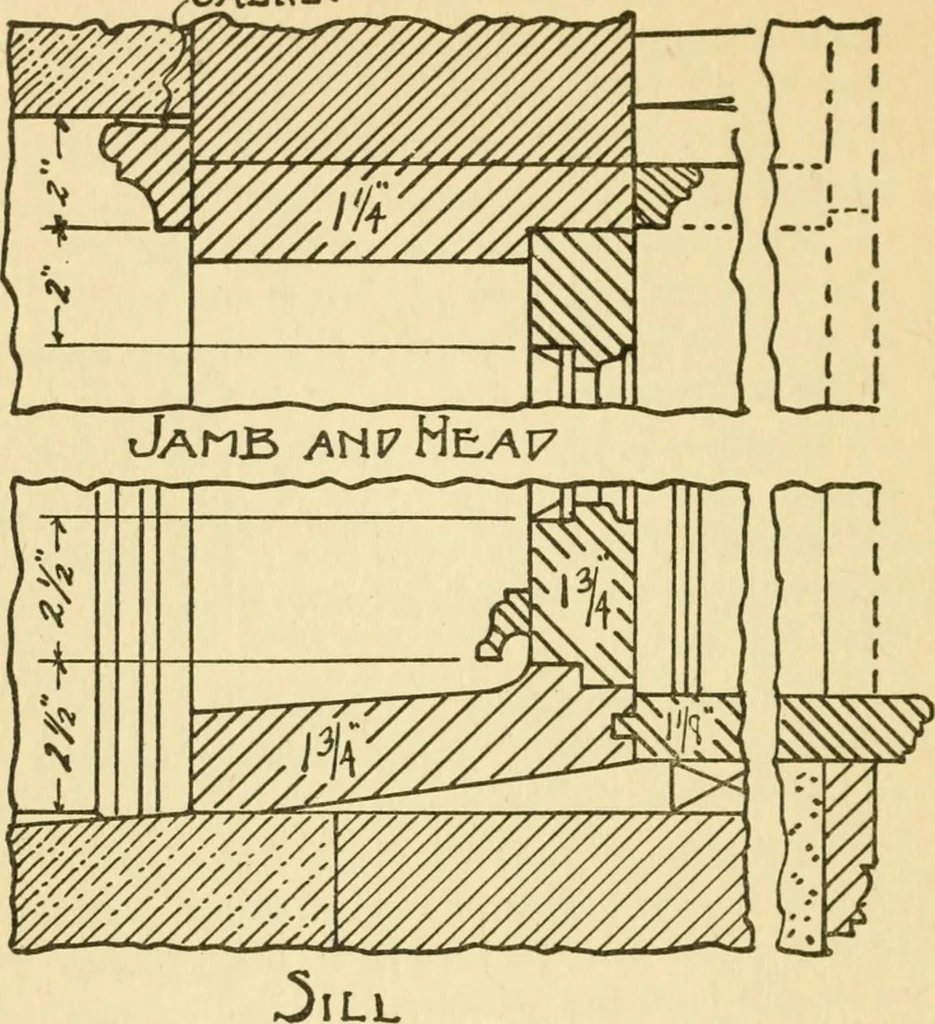

case the window is called a casementwindow. If the sash are hung on pivots, eithervertically or horizontally, we speak of the win-dow as a pivoted window. Referring to Fig. 68, A is the lower rail ofthe sash, usually from 2i/2 to 3 inches wide; Bis the meeting rail, from 1 to 2 inches wide;C is the… … Fig. 70. Typical Detail of Plank-Framed Basement Window. fixed bar between the transom G and the double-hung sash below. The usual thicknesses of sash are li/s inchesfor small windows, to 1%, l)4, and sometimes2^ inches, depending upon the size of sash.The larger the window, the heavier the…
