Radford's architectural drawing : complete guide to work of architect's office, drawing to scale--tracing--detailing--designing --classic order of architecture. A complete and thorough course, clearly written and beautifully illustrated; suited alike to individual study and class instruction (1912)
Radford, William A., 1865- · Chicago, The Radford Architectural Company · leaf 99

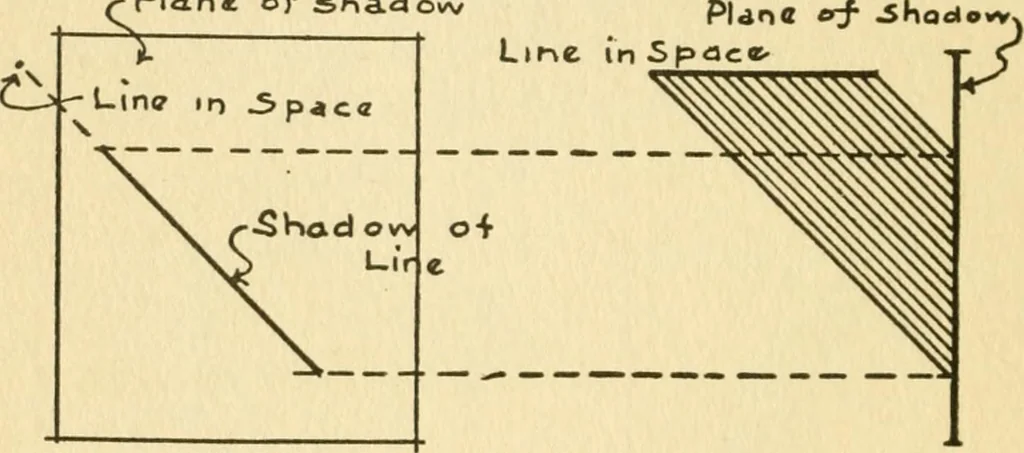

ich the shadowfalls (see Figs. 34, 35, and 36). The shadow of a straight line parallel to theplane upon which the shadow falls, is an irregu- 264 AECHITECTURAL DEAFTING lar line giving the true outline of the surface(see Fig. 37). The shadow of a perpendicular line on a roofis therefore a line… … P*»ONT Elevatiom .Side. Fig. 34. Fig. 35. Shadow of a lane which is Perpendicular to lane of Shadow.
Architectural drawing · Architecture
