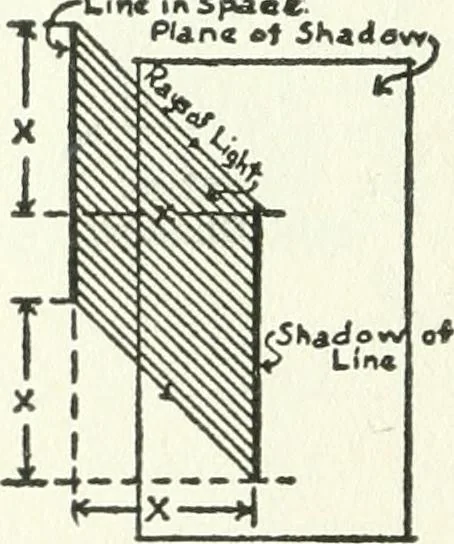

of the samecube. The shadow of a point is where the ray oflight surrounding the point intersects the planeupon which the shadow falls. In Pig. 28, wesee the light surrounding the point, and inter-secting the plane, giving the shadow of the pointupon the plane. The shadow is located as fardown and… … Plane of Skado i ... I X Pig. 30. Elevation of Line and Fig. 31. Plan of Line in SpaceShadow. and Plane. Shadow of a Line Parallel to Plane of Shadow. The shadow of a straight line in space is theintersection of the light surrounding this linewith the plane of shadow. By casting the shad-ows of the…
